STM32F372RBT6
IC MCU 32BIT 128KB FLASH 64LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

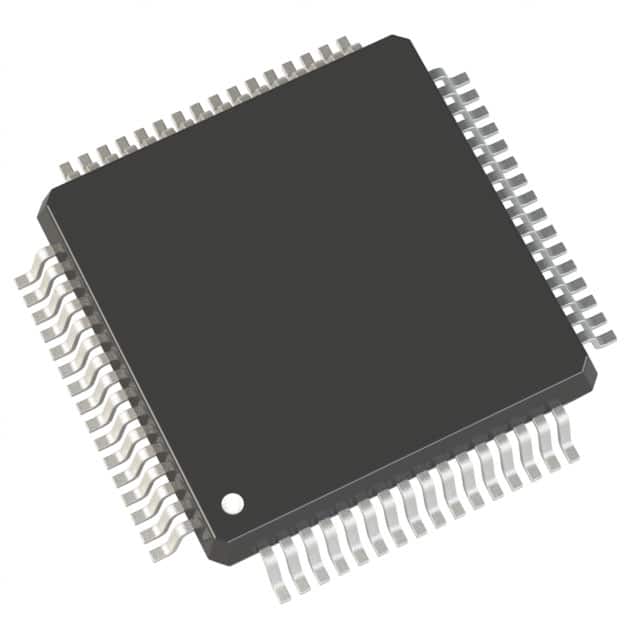

STMicroelectronics STM32F3 series microcontroller, part number STM32F372RBT6. This 32-bit ARM Cortex-M4 core microcontroller operates at 72MHz and features 128KB of FLASH program memory. It includes 24KB of RAM and a 12-bit Analog-to-Digital converter with a 16-bit option, along with a 12-bit Digital-to-Analog converter. Connectivity options include CANbus, I2C, IrDA, LINbus, SPI, UART/USART, and USB. Peripherals include DMA, I2S, POR, PWM, and WDT. The device is housed in a 64-LQFP (10x10) package suitable for surface mounting, with 52 I/O pins. Operating temperature range is -40°C to 85°C. This component is utilized in industrial automation, consumer electronics, and medical device applications.
Additional Information
Series: STM32F3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 72MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 24K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 1x12b, 1x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 52 |
| Programmable | Not Verified |
