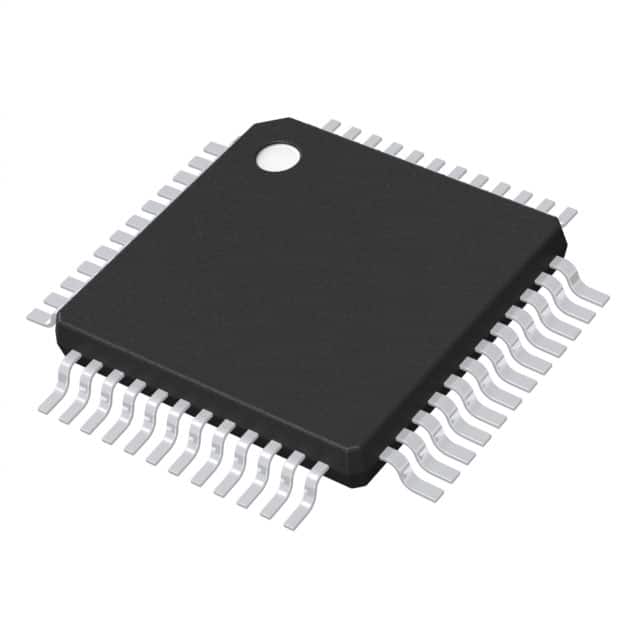

STM32F372CCT6
IC MCU 32BIT 256KB FLASH 48LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics STM32F3 series ARM Cortex-M4 microcontroller, part number STM32F372CCT6. This 32-bit microcontroller features a single-core 72MHz ARM Cortex-M4 processor with 256KB of FLASH program memory and 32KB of RAM. It offers extensive connectivity options including CANbus, I2C, IrDA, LINbus, SPI, UART/USART, and USB. Integrated data conversion capabilities include a 1x12-bit A/D converter and a 1x16-bit A/D converter, along with a 1x12-bit D/A converter. Peripherals include DMA, I2S, POR, PWM, and WDT. The device is supplied in a 48-LQFP (7x7) surface mount package and operates within a temperature range of -40°C to 85°C. This component finds application in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: STM32F3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 72MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 1x12b, 1x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 36 |
| Programmable | Not Verified |
