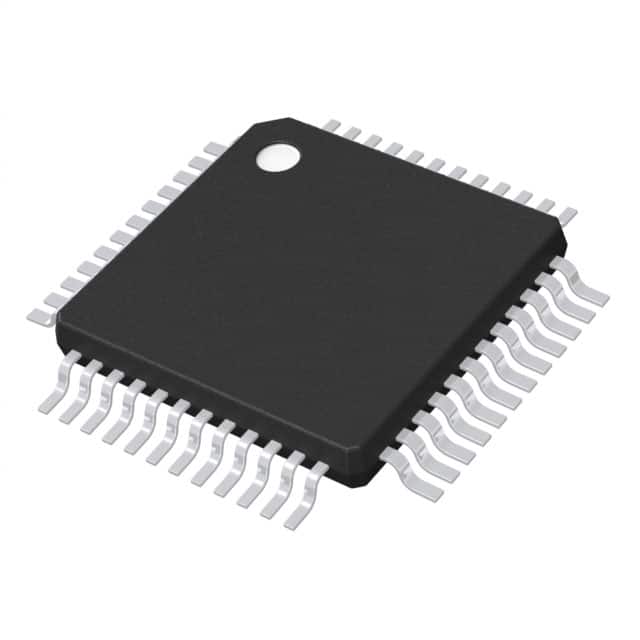

STM32F372C8T6
IC MCU 32BIT 64KB FLASH 48LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics STM32F3 series microcontroller, part number STM32F372C8T6, features an ARM Cortex-M4 32-bit single-core processor operating at 72MHz. This device offers 64KB of FLASH program memory and 16KB of RAM. Connectivity options include CANbus, I2C, IrDA, LINbus, SPI, UART/USART, and USB. Integrated data conversion capabilities include a 1x12-bit and a 1x16-bit Analog-to-Digital converter, along with a 1x12-bit Digital-to-Analog converter. Peripherals such as DMA, I2S, POR, PWM, and WDT are also included. The STM32F372C8T6 is housed in a 48-LQFP (7x7) surface mount package and operates within a voltage range of 2V to 3.6V, with an operating temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation, medical devices, and consumer electronics.
Additional Information
Series: STM32F3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 72MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 1x12b, 1x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 36 |
| Programmable | Not Verified |
