STM32F207IGH6J
IC MCU 32BIT 1MB FLASH 176UFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
The STMicroelectronics STM32F207IGH6J is a 32-bit ARM Cortex-M3 microcontroller featuring a single-core 120MHz processor. This device offers 1MB of Flash program memory and 132KB of RAM. It integrates a comprehensive set of peripherals including CANbus, Ethernet, I2C, IrDA, LINbus, Memory Card, SPI, UART/USART, and USB OTG connectivity. Data conversion capabilities are provided by 24x12-bit ADCs and 2x12-bit DACs. Additional peripherals include Brown-out Detect/Reset, DMA, I2S, LCD controller support, POR, PWM, and WDT. The STM32F2 series component is supplied in a 176+25UFBGA (10x10) package, designed for surface mounting. It operates within a voltage range of 1.8V to 3.6V and is rated for an operating temperature of -40°C to 85°C. This microcontroller is commonly utilized in industrial automation, consumer electronics, and advanced control applications.
Additional Information
Series: STM32F2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 201-UFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 132K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | CANbus, Ethernet, I2C, IrDA, LINbus, Memory Card, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Number of I/O | 140 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

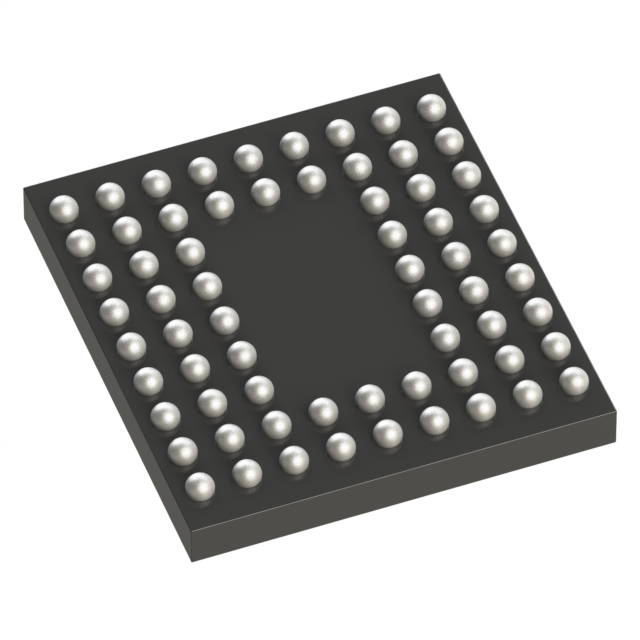

STM32F205RGY6TR
