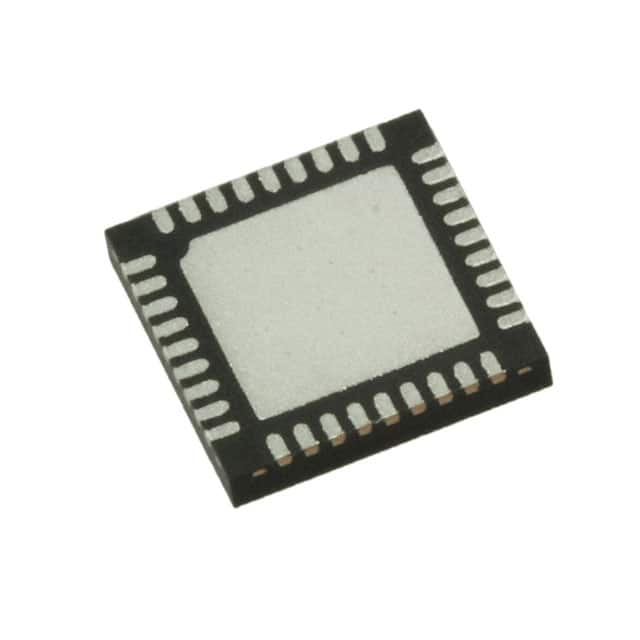

STM32F103T6U6
IC MCU 32BIT 32KB FLASH 36VFQFPNManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
The STMicroelectronics STM32F103T6U6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M3 core. This device operates at a maximum frequency of 72MHz and features 32KB of FLASH program memory and 10KB of RAM. Connectivity options include CANbus, I2C, IrDA, LINbus, SPI, UART/USART, and USB. The microcontroller is equipped with 26 I/O pins and includes peripherals such as DMA, Motor Control PWM, PDR, POR, PVD, PWM, a temperature sensor, and a WDT. Analog capabilities are provided by 10x12-bit ADCs. Supplied in a 36-VFQFPN (6x6) package, this component is suitable for surface mounting and operates within a temperature range of -40°C to 85°C. It finds application in industrial automation, automotive, and consumer electronics sectors.
Additional Information
Series: STM32F1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 72MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 10K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 10x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Number of I/O | 26 |
| Programmable | Not Verified |
