ST92F150JDV1QCE
IC MCU 8/16BIT 128KB FLSH 100QFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST9 series microcontroller, part number ST92F150JDV1QCE, is an 8/16-bit MCU featuring a 24MHz ST9 core. This device offers 128KB of FLASH program memory and 6KB of RAM. Connectivity options include CANbus, I2C, SCI, and SPI. On-chip peripherals include DMA, LVD, PWM, and WDT. It is equipped with a 100-PQFP (14x20) package for surface mounting and boasts 77 I/O lines. The integrated A/D converter provides 16 channels with 10-bit resolution. This component operates within an ambient temperature range of -40°C to 125°C and requires an external oscillator. The supply voltage range is 4.5V to 5.5V. This microcontroller is suitable for applications in automotive, industrial control, and consumer electronics.
Additional Information
Series: ST9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 6K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | ST9 |
| Data Converters | A/D 16x10b |
| Core Size | 8/16-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | DMA, LVD, PWM, WDT |
| Supplier Device Package | 100-PQFP (14x20) |
| Number of I/O | 77 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
ST90R158Q6
IC MCU 8/16BIT ROMLESS 80PQFP

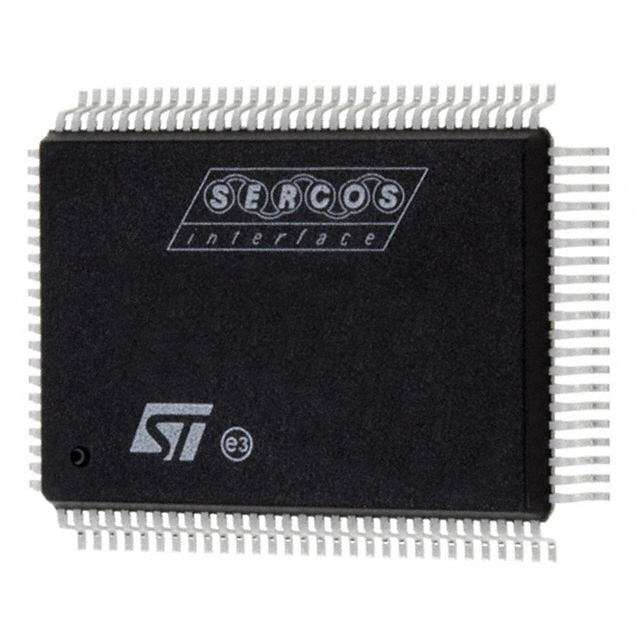

ST92F124V1QB
