ST7FLI15BF1U6
IC MCU 8BIT 4KB FLASH 20QFNManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

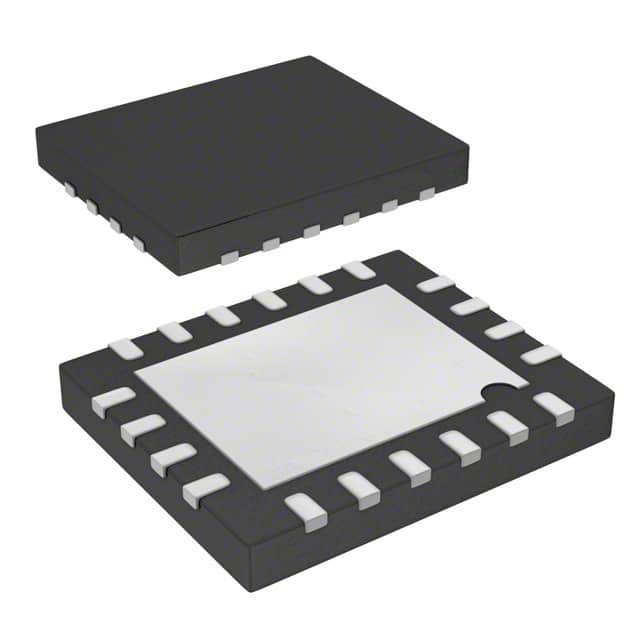

STMicroelectronics ST7 microcontroller, part number ST7FLI15BF1U6, is an 8-bit device operating at 8MHz. This component features 4KB of FLASH program memory and 256 bytes of RAM. Connectivity options include SPI, and it offers 17 general-purpose I/O pins. Integrated peripherals comprise LVD, POR, PWM, and WDT. The device includes a 7-channel 10-bit Analog-to-Digital converter. The ST7FLI15BF1U6 is housed in a 20-QFN package with an exposed pad, suitable for surface mounting. It operates within an ambient temperature range of -40°C to 85°C and requires a supply voltage between 2.7V and 5.5V. This microcontroller is utilized in various applications, including industrial automation and consumer electronics.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 20-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 7x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 17 |
| Programmable | Not Verified |
