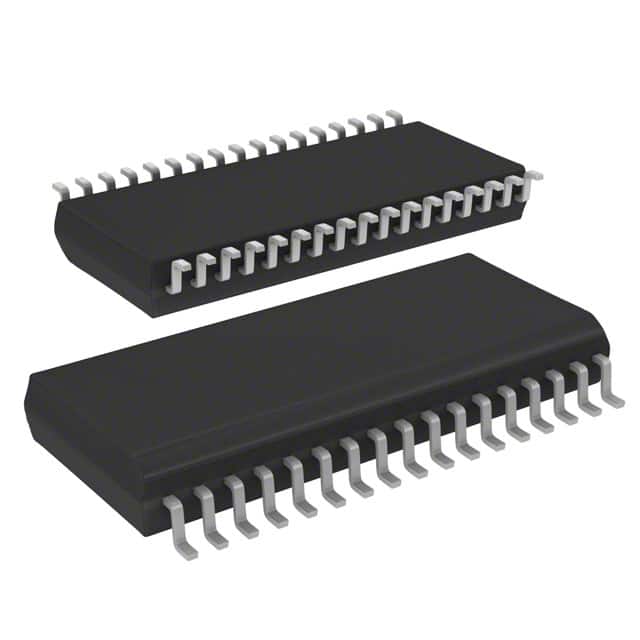

ST72F621L4M1
IC MCU 8BIT 16KB FLASH 34SOICManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 microcontroller, part number ST72F621L4M1, features an 8-bit ST7 core operating at 8MHz. This device offers 16KB of FLASH program memory and 768 bytes of RAM, alongside 8x10-bit A/D converters. Connectivity options include SCI, SPI, and USB interfaces. Peripherals such as DMA, LVD, POR, PWM, and WDT are integrated for enhanced functionality. The microcontroller is supplied in a 34-BSOP (0.295", 7.50mm Width) surface mount package and operates within a temperature range of 0°C to 70°C. The ST72F621L4M1 is suitable for applications in automotive and industrial sectors.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 34-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Connectivity | SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 23 |
| Programmable | Not Verified |
Request a Quote
