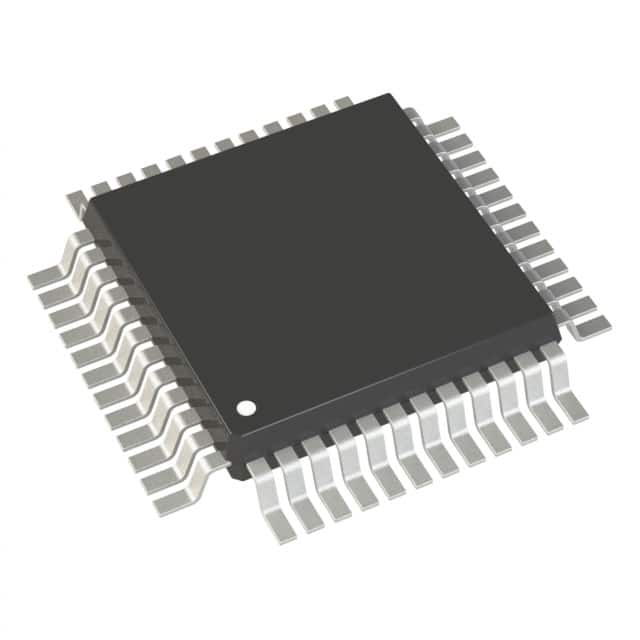

ST72F561K6TCXS
IC MCU 8BIT 32KB FLASH 32LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 series microcontroller, part number ST72F561K6TCXS. This 8-bit MCU features a 32KB FLASH program memory and 2KB RAM. Operating at 8MHz, it includes a 16-channel 10-bit Analog-to-Digital converter. Connectivity options encompass CANbus, LINbus, SCI, and SPI interfaces. The device is equipped with peripherals such as LVD, POR, PWM, and WDT. It is supplied in a 32-LQFP (7x7) package for surface mounting and operates within a voltage range of 4.5V to 5.5V, with an ambient temperature rating of -40°C to 125°C. This component is AEC-Q100 qualified and suitable for automotive applications.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | CANbus, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 32-LQFP (7x7) |
| Grade | Automotive |
| Number of I/O | 48 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
