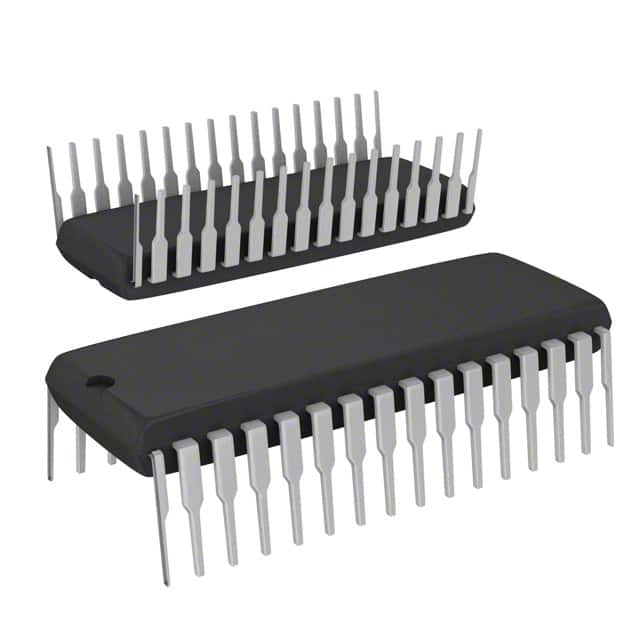

ST72F324K4B6
IC MCU 8BIT 16KB FLASH 32SDIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 microcontroller, part number ST72324K4B6, features an 8-bit ST7 core operating at 8MHz. This device offers 16KB of FLASH program memory and 512 bytes of RAM. Connectivity options include SCI and SPI interfaces. Peripherals include LVD, POR, PWM, and WDT. It is equipped with an 8-channel 10-bit Analog-to-Digital converter. The component is housed in a 32-pin SDIP package and supports through-hole mounting. Operating temperature range is -40°C to 85°C. This microcontroller finds application in automotive, industrial control, and consumer electronics sectors.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Programmable | Not Verified |
