ST72F324K2B6
IC MCU 8BIT 8KB FLASH 32SDIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

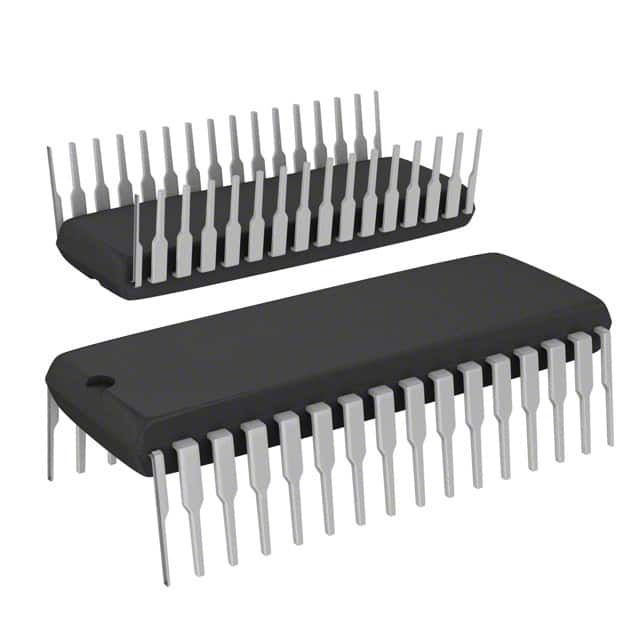

STMicroelectronics ST7 microcontroller, part number ST72324K2B6, features an 8-bit ST7 core operating at 8MHz. This component offers 8KB of FLASH program memory and 384 bytes of RAM, with an 8x10-bit A/D converter for data acquisition. Connectivity options include SCI and SPI interfaces. Integrated peripherals consist of LVD, POR, PWM, and WDT. The device is housed in a 32-SDIP (0.400", 10.16mm) package, suitable for through-hole mounting. It operates within a temperature range of -40°C to 85°C and requires a supply voltage of 3.8V to 5.5V. This microcontroller is commonly employed in automotive and industrial applications.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 384 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Programmable | Not Verified |
