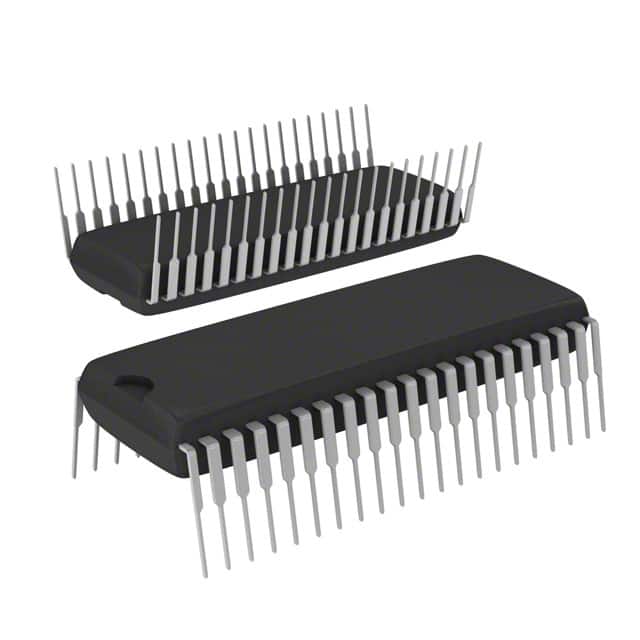

ST72F324J4B5
IC MCU 8BIT 16KB FLASH 42DIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 microcontroller, part number ST72324J4B5, features an 8-bit ST7 core operating at 8MHz. This device offers 16KB of FLASH program memory and 512 bytes of RAM. Connectivity options include SCI and SPI interfaces. Integrated peripherals comprise LVD, POR, PWM, and WDT. The microcontroller is equipped with 12 channels of 10-bit Analog-to-Digital converters. Designed for through-hole mounting, it is housed in a 42-DIP package with a 0.600" width. The operating temperature range is -10°C to 85°C. This component finds application in various industrial automation and automotive systems.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 12x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 32 |
| Programmable | Not Verified |
