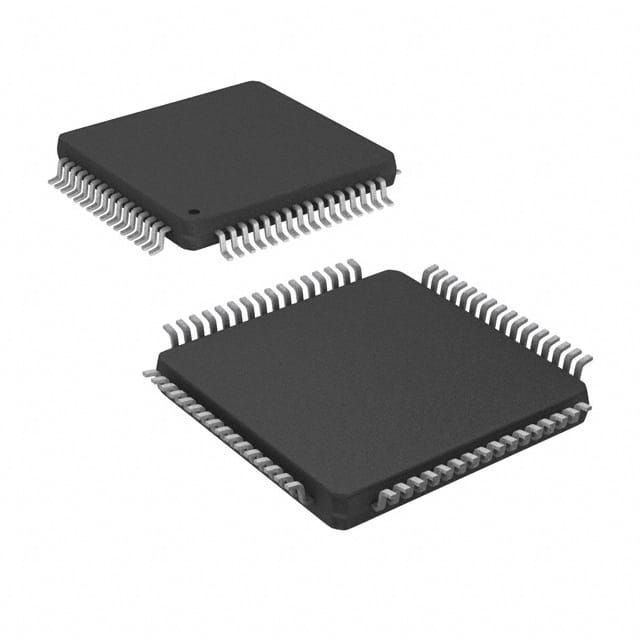

ST72F321AR7T6TR
IC MCU 8BIT 48KB FLASH 64TQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 microcontroller, part number ST72321AR7T6TR, features an 8-bit ST7 core processor operating at 8MHz. This FLASH-based device offers 48KB of program memory with 1.5KB of RAM. Connectivity options include I2C, SCI, and SPI interfaces. The microcontroller is equipped with a 16-channel, 10-bit Analog-to-Digital converter and peripherals such as LVD, POR, PWM, and WDT. Designed for surface mount applications, it comes in a 64-TQFP package and operates within a temperature range of -40°C to 85°C. The supply voltage range is 3.8V to 5.5V. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 48KB (48K x 8) |
| RAM Size | 1.5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 48 |
| Programmable | Verified |
