ST72F264G2M6
IC MCU 8BIT 8KB FLASH 28SOICManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

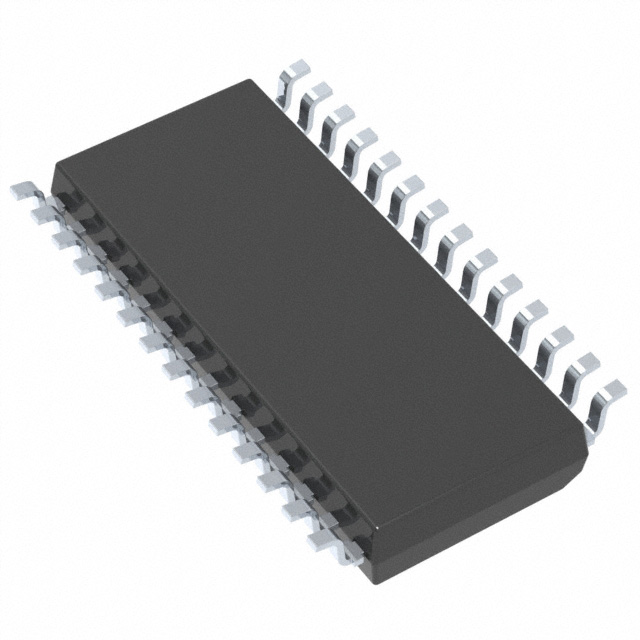

STMicroelectronics ST7 series microcontroller, part number ST72F264G2M6. This 8-bit MCU features an ST7 core operating at 16MHz. It offers 8KB of FLASH program memory and 256 bytes of RAM. Peripherals include I2C, SCI, and SPI for connectivity, along with LVD, POR, PWM, and WDT. A 6-channel 10-bit A/D converter is integrated. The component is supplied in a 28-SOIC (0.295", 7.50mm width) surface mount package. Operating voltage is 2.7V to 5.5V, with an operating temperature range of -40°C to 85°C. This device is commonly found in automotive and industrial applications.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 6x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 28-SO |
| Number of I/O | 22 |
| Programmable | Not Verified |
