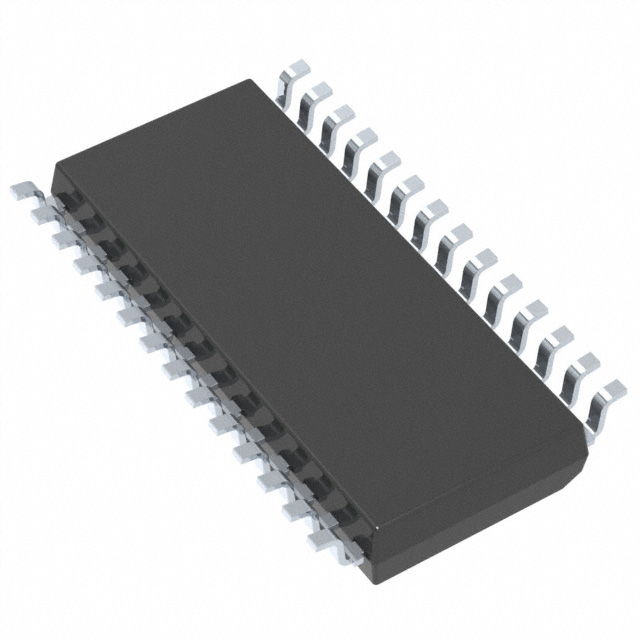

ST72F262G1M6
IC MCU 8BIT 4KB FLASH 28SOICManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 microcontroller, part number ST72F262G1M6, features an 8-bit ST7 core operating at 16MHz. This device offers 4KB of FLASH program memory and 256 bytes of RAM. It includes an internal oscillator and supports SPI connectivity. Peripherals include LVD, POR, PWM, and WDT. The ST72F262G1M6 is equipped with 6 channels of 10-bit A/D conversion and provides 22 I/O lines. It is housed in a 28-SOIC package suitable for surface mounting and operates within a voltage range of 2.7V to 5.5V. This component is utilized in automotive and industrial applications.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 6x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 28-SO |
| Number of I/O | 22 |
| Programmable | Not Verified |
