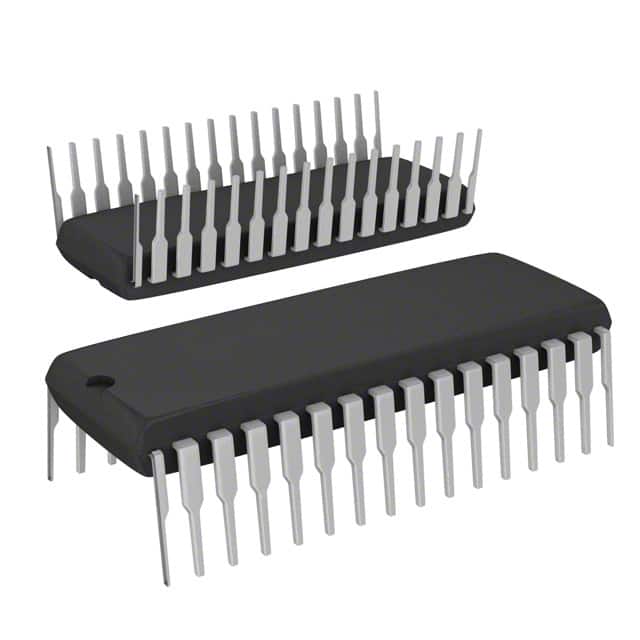

ST72C254G2B6
IC MCU 8BIT 8KB FLASH 32SDIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST7 microcontroller, part number ST72C254G2B6, is an 8-bit device featuring an 8KB FLASH program memory and 256 bytes of RAM. Operating at a maximum frequency of 16MHz, this component utilizes the ST7 core. It offers 22 general-purpose I/O pins and includes integrated peripherals such as LVD, POR, PWM, and WDT. Connectivity options include I2C and SPI interfaces, alongside a 6-channel 8-bit Analog-to-Digital converter. The ST72C254G2B6 operates within a voltage range of 3.2V to 5.5V and is specified for an ambient temperature range of -40°C to 85°C. This microcontroller is supplied in a 32-pin SDIP (0.400" width) package and is suitable for applications in automotive and industrial control sectors.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 6x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.2V ~ 5.5V |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 22 |
| Programmable | Not Verified |
