ST72C215G2M6
IC MCU 8BIT 8KB FLASH 28SOICManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

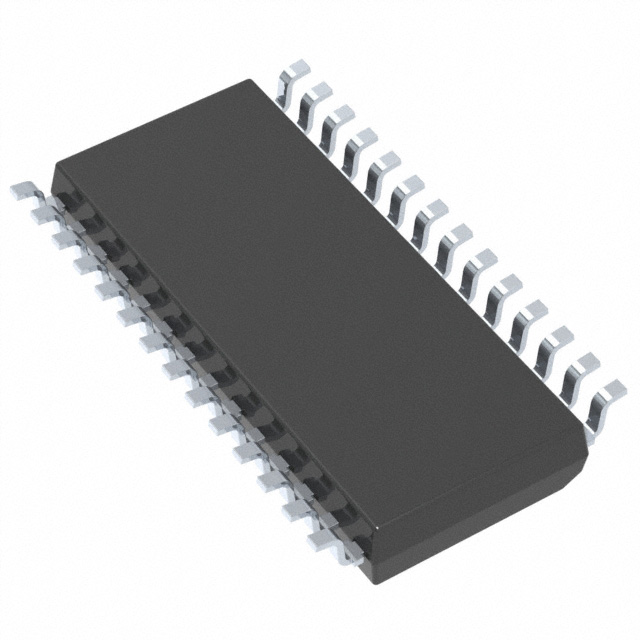

STMicroelectronics ST7 microcontroller, part number ST72C215G2M6. This 8-bit MCU features an ST7 core running at 16MHz with 8KB of FLASH program memory and 256 bytes of RAM. Integrated peripherals include an A/D converter with 6x8-bit channels, SPI connectivity, LVD, POR, PWM, and WDT. The device is packaged in a 28-SOIC (0.295", 7.50mm Width) surface mount configuration. Operating voltage is between 3.2V and 5.5V, with an operating temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation and consumer electronics applications.
Additional Information
Series: ST7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ST7 |
| Data Converters | A/D 6x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.2V ~ 5.5V |
| Connectivity | SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 28-SO |
| Number of I/O | 22 |
| Programmable | Not Verified |
