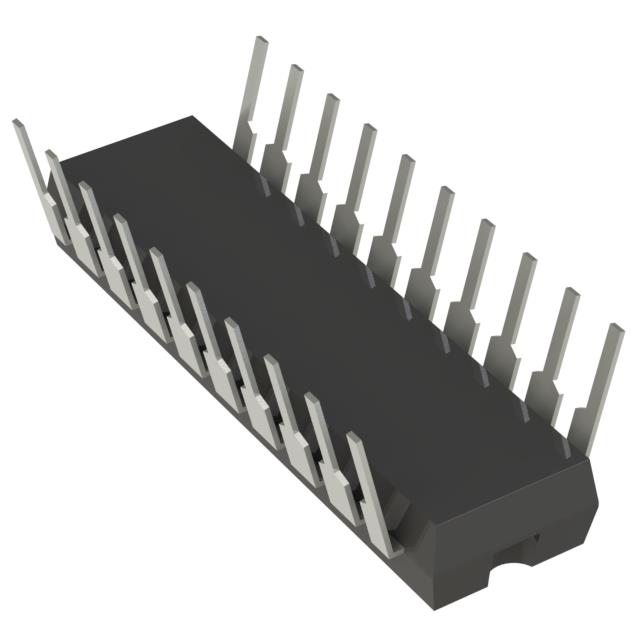

ST62T60CB6
IC MCU 8BIT 3.8KB OTP 20DIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST6 microcontroller, part number ST62T60CB6, features an 8-bit ST6 core operating at 8MHz. This OTP (One-Time Programmable) device offers 3.8KB of program memory and 128 x 8 bytes of RAM, complemented by 128 x 8 bytes of EEPROM data storage. Connectivity options include SPI. The component provides 13 general-purpose I/O pins and integrates a 7-channel 8-bit Analog-to-Digital converter. Peripherals include LED drivers, LVD (Low Voltage Detect), POR (Power-On Reset), and WDT (Watchdog Timer). Designed for through-hole mounting in a 20-PDIP package, it operates within a temperature range of -40°C to 85°C. This device finds application in industrial automation and consumer electronics.
Additional Information
Series: ST6RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 3.8KB (3.8K x 8) |
| RAM Size | 128 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | 128 x 8 |
| Core Processor | ST6 |
| Data Converters | A/D 7x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 6V |
| Connectivity | SPI |
| Peripherals | LED, LVD, POR, WDT |
| Supplier Device Package | 20-PDIP |
| Number of I/O | 13 |
| Programmable | Not Verified |
