ST62E65CF1
IC MCU 8BIT 3.8KB EPROM/UV 28DIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

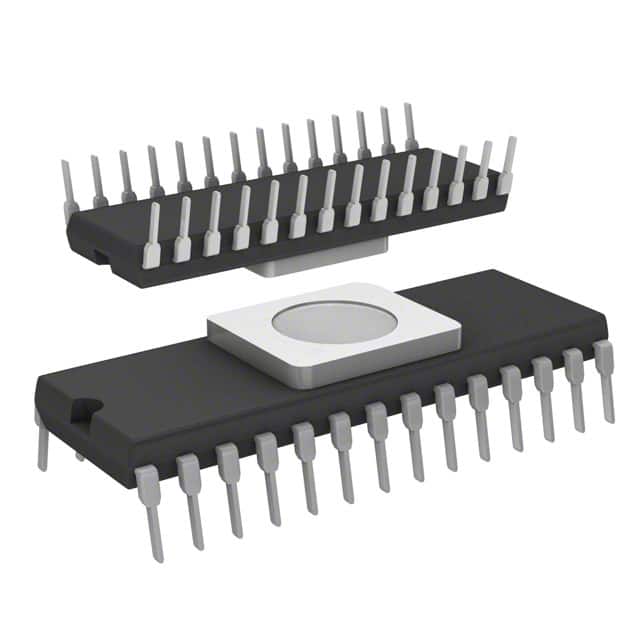

STMicroelectronics ST6 microcontroller, part number ST62E65CF1, is an 8-bit device operating at 8MHz. This component features 3.8KB of EPROM program memory, 128 x 8 bytes of RAM, and 128 x 8 bytes of EEPROM. It includes an A/D converter with 13 channels of 8-bit resolution. Connectivity is supported via SPI. The microcontroller offers 21 general-purpose I/O pins and integrated peripherals such as LED control, LVD, POR, and WDT. It is housed in a 28-lead ceramic DIP package with a window for UV erasure. The operating temperature range is 0°C to 70°C. This device finds application in industrial automation and control systems.
Additional Information
Series: ST6RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-CDIP (0.600"", 15.24mm) Window |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 3.8KB (3.8K x 8) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | 128 x 8 |
| Core Processor | ST6 |
| Data Converters | A/D 13x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 6V |
| Connectivity | SPI |
| Peripherals | LED, LVD, POR, WDT |
| Number of I/O | 21 |
| Programmable | Not Verified |
Request a Quote
