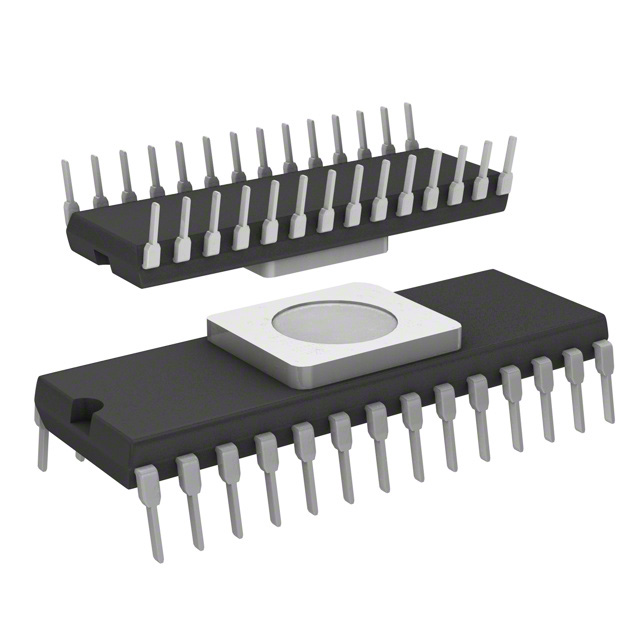

ST62E25CF1
IC MCU 8BIT 4KB EPROM/UV 28DIPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics ST6 series 8-bit microcontroller IC, part number ST62E25CF1. This 8MHz device features 4KB (4K x 8) of EPROM program memory with UV erasability and 64 x 8 bytes of RAM. It includes a 16x8-bit Analog-to-Digital converter and integrated peripherals such as LVD (Low Voltage Detection), POR (Power-On Reset), and WDT (Watchdog Timer). The ST62E25CF1 offers 20 general-purpose I/O pins and operates from a 3V to 6V supply. Mounting is through-hole in a 28-CDIP (0.600") windowed package, suitable for industrial automation, consumer electronics, and automotive applications within an operating temperature range of 0°C to 70°C.
Additional Information
Series: ST6RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-CDIP (0.600"", 15.24mm) Window |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 64 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | ST6 |
| Data Converters | A/D 16x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 6V |
| Connectivity | - |
| Peripherals | LVD, POR, WDT |
| Number of I/O | 20 |
| Programmable | Not Verified |
