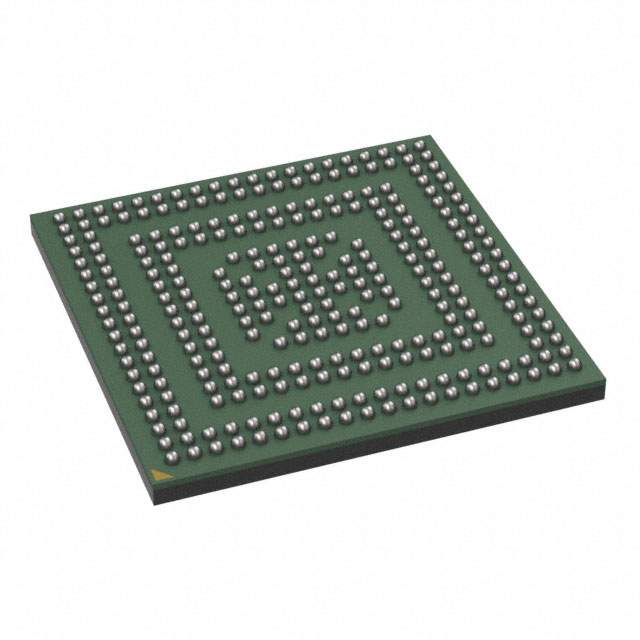

SPC58NN84C3RSHBR
IC MCU 32BIT 6MB FLASH 292FPBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC58NN84C3RSHBR is a 32-bit tri-core microcontroller featuring the e200z4 core architecture. This automotive-grade component operates at 200MHz and offers 6MB of FLASH program memory. The device includes 448KB of RAM and 256KB of EEPROM, along with multiple data converters supporting 10-bit, 12-bit, and 16-bit SAR inputs. Connectivity options include CANbus, Ethernet, FlexRay, I2C, LINbus, and SPI. Peripherals such as DMA and WDT are integrated. The SPC58 series microcontroller is housed in a 292-FPBGA (17x17) package and is supplied on tape and reel. It is qualified to AEC-Q100 standards, suitable for demanding automotive applications. The operating temperature range is -40°C to 150°C (TJ), with a supply voltage range of 1.14V to 1.26V and 3V to 5.5V.
Additional Information
Series: SPC58RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 292-FBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | 6MB (6M x 8) |
| RAM Size | 448K x 8 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256K x 8 |
| Core Processor | e200z4 |
| Data Converters | A/D 10b, 12b, 16b SAR |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.26V, 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, WDT |
| Supplier Device Package | 292-FPBGA (17x17) |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
