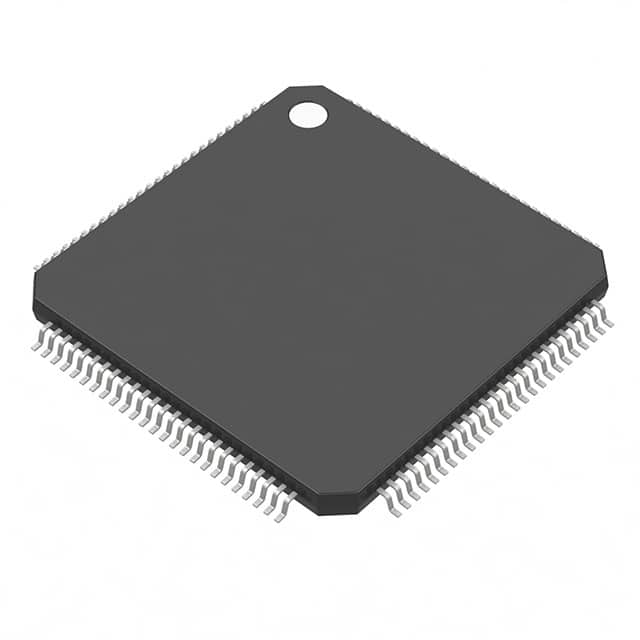

SPC584B70E3NDC0Y
IC MCU 32BIT 2MB FLASH 100ETQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC58 4B-Line SPC584B70E3NDC0Y is a 32-bit automotive-grade microcontroller featuring the e200z420 single-core processor operating at 120MHz. This device offers 2MB of FLASH program memory and 128KB of RAM, complemented by 64KB of EEPROM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SPI, and UART/USART. It integrates an internal oscillator and peripherals such as DMA, POR, and WDT. Data conversion capabilities are provided by 10-bit and 12-bit SAR ADCs. The microcontroller is packaged in a 100-eTQFP (14x14) exposed pad for surface mounting. Qualified to AEC-Q100, it operates within a temperature range of -40°C to 105°C (TA) and supports supply voltages from 1.14V to 1.26V and 3V to 5.5V. This component is suitable for automotive applications.
Additional Information
Series: SPC58 4B-LineRoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z420 |
| Data Converters | A/D 10b, 12b SAR |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.26V, 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 100-eTQFP (14x14) |
| Grade | Automotive |
| Number of I/O | 64 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
