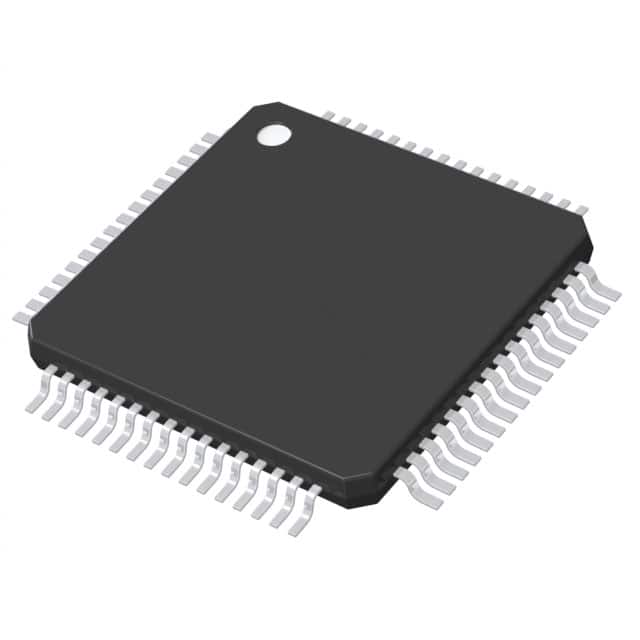

SPC570S50E1CEFAY
IC MCU 32BIT 512KB FLASH 64ETQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC57 S series microcontroller, part number SPC570S50E1CEFAY. This 32-bit single-core e200z0h processor operates at 80MHz and features 512KB of FLASH program memory with an additional 32KB of EEPROM. The device includes 48KB of RAM and offers connectivity options such as CANbus, LINbus, SPI, and UART/USART. Integrated peripherals include DMA, POR, and WDT. Data conversion is supported by a 16x12-bit A/D converter. The component is housed in a 64-eTQFP (10x10) exposed pad package, suitable for surface mounting. Qualified to AEC-Q100 and rated for automotive applications, this microcontroller operates within a temperature range of -40°C to 125°C. This component is commonly utilized in automotive control systems.
Additional Information
Series: SPC57 SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 48K x 8 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| Core Processor | e200z0h |
| Data Converters | A/D 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 64-eTQFP (10x10) |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

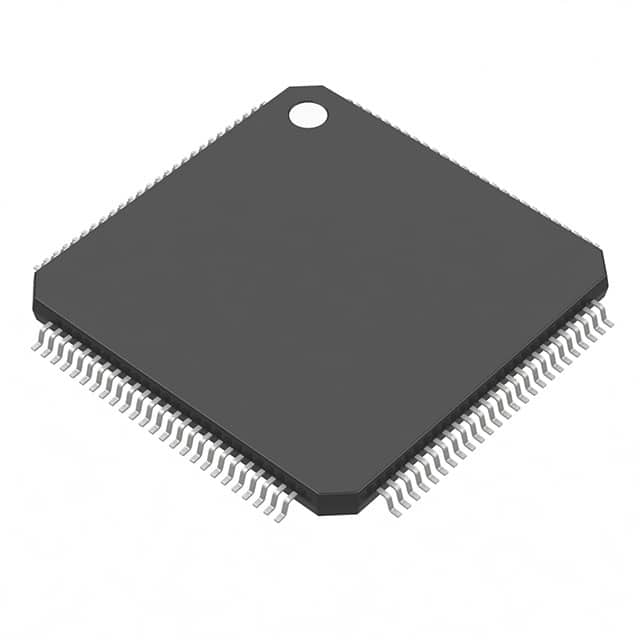

SPC574S60E3CE0AY
