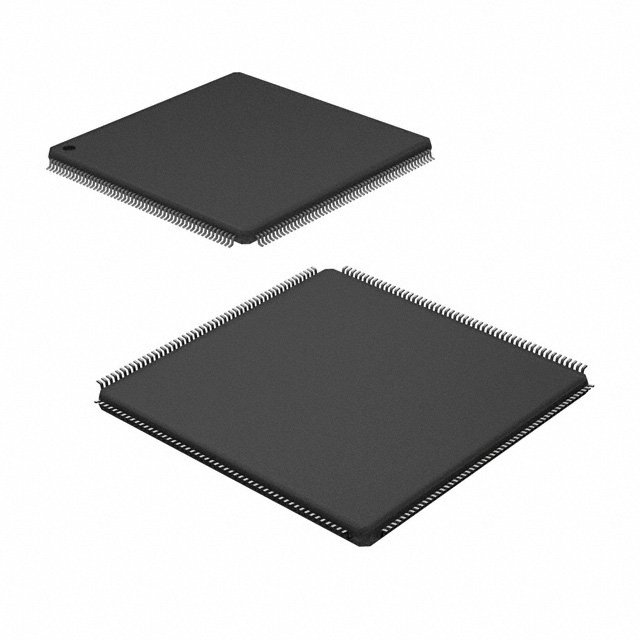

SPC56EC74L8C9E0X
IC MCU 32BIT 1.5MB FLASH 208LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC56 Automotive Microcontroller, part number SPC56EC74L8C9E0X, features a 32-bit dual-core architecture with e200z0h and e200z4d processors operating at 80MHz and 120MHz respectively. This device offers 1.5MB of FLASH program memory and 192KB of RAM, complemented by 64KB of EEPROM. Connectivity options include CANbus, Ethernet, LINbus, SPI, and UART/USART. The 208-LQFP (28x28) package facilitates surface mounting. Integrated peripherals include DMA, POR, PWM, and WDT. Data conversion capabilities comprise 33x10-bit and 10x12-bit ADCs. Rated for automotive applications and AEC-Q100 qualified, it operates within a temperature range of -40°C to 125°C (TA) and a supply voltage of 3V to 5.5V. This component is utilized in automotive control systems and advanced driver-assistance systems.
Additional Information
Series: SPC56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z0h, e200z4d |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Grade | Automotive |
| Number of I/O | 177 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
