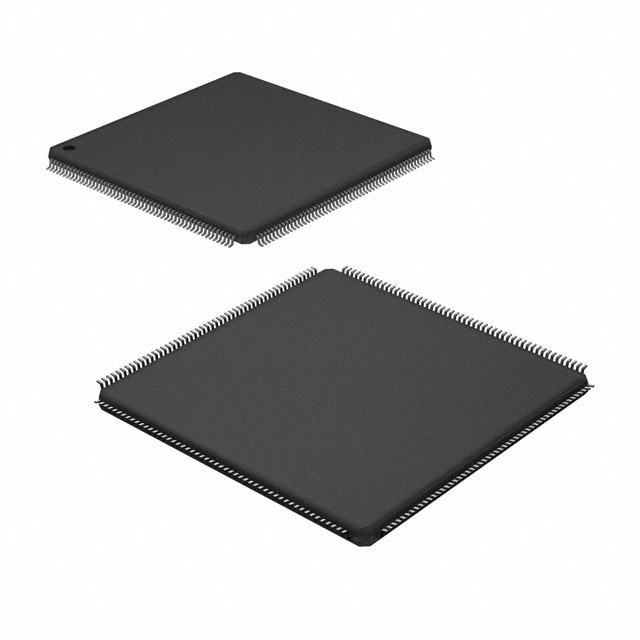

SPC564B74L8C9E0X
IC MCU 32BIT 3MB FLASH 208LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC564B74L8C9E0X microcontroller featuring a 32-bit e200z4d single-core processor operating at 120MHz. This automotive-grade component offers 3MB of FLASH program memory and 192KB of RAM. Connectivity options include CANbus, LINbus, SPI, and UART/USART. The device is equipped with multiple data converters, including 33x10-bit and 10x12-bit ADCs, along with 64KB of EEPROM. Peripherals include DMA, POR, PWM, and WDT. The SPC56 series microcontroller is housed in a 208-LQFP package and is designed for surface mounting. This component is suitable for demanding automotive applications requiring robust performance and extensive peripheral integration.
Additional Information
Series: SPC56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Grade | Automotive |
| Number of I/O | 177 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
