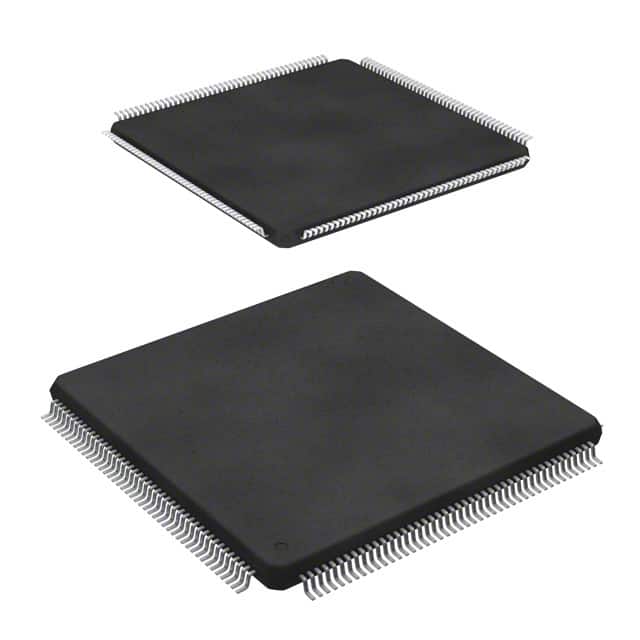

SPC564A80L7CFAY
IC MCU 32BIT 4MB FLASH 176LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC56 Series microcontroller IC featuring the e200z4 32-bit single-core processor. This automotive-grade component operates at 150MHz and offers 4MB of FLASH program memory with 192KB of RAM. It includes a comprehensive suite of peripherals such as DMA, POR, PWM, and WDT, along with multiple connectivity options including CANbus, LINbus, SPI, SCI, and EBI/EMI. The device integrates 34 channels of 12-bit Analog-to-Digital converters and provides 118 I/O lines. Supplied in a 176-LQFP (24x24) package, this surface-mount component is qualified to AEC-Q100 standards and operates within a temperature range of -40°C to 125°C. Applications include automotive body control, powertrain, and safety systems.
Additional Information
Series: SPC56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z4 |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Grade | Automotive |
| Number of I/O | 118 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
