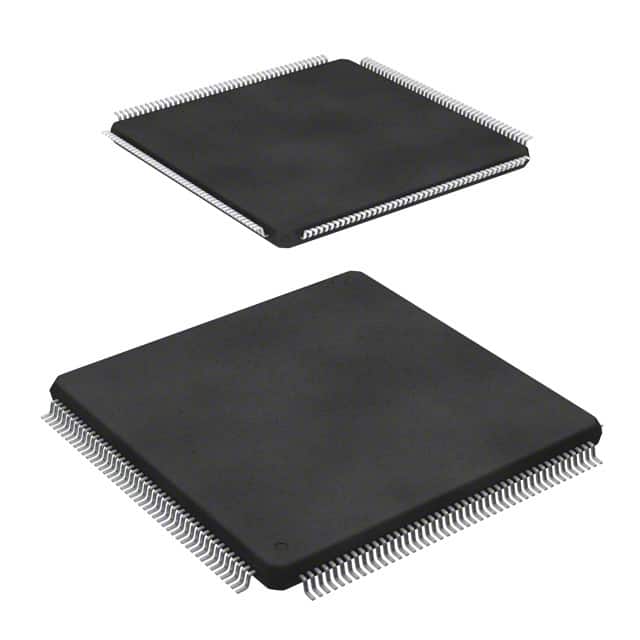

SPC564A70L7CFAR
IC MCU 32BIT 2MB FLASH 176LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC56 microcontroller, part number SPC564A70L7CFAR, features a 32-bit single-core e200z4 processor operating at 150MHz. This device offers 2MB of FLASH program memory and 128KB of RAM. Connectivity options include CANbus, EBI/EMI, LINbus, SCI, and SPI. It is equipped with 34 channels of 12-bit Analog-to-Digital converters. Key peripherals include DMA, POR, PWM, and WDT. The microcontroller is housed in a 176-LQFP (24x24) surface mount package. Operating voltage is between 1.14V and 1.32V, with an operating temperature range of -40°C to 125°C. This component is commonly utilized in automotive and industrial applications. Packaging is supplied on tape and reel.
Additional Information
Series: SPC56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z4 |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 150 |
| Programmable | Not Verified |
