SPC560P50L3BEABR
IC MCU 32BIT 512KB FLASH 100LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC56 SPC560P50L3BEABR microcontroller featuring a 32-bit e200z0h single-core processor operating at 64MHz. This AEC-Q100 qualified component offers 512KB of FLASH program memory and 40KB of RAM. Connectivity options include CANbus, LINbus, SPI, and UART/USART. On-chip peripherals include DMA, POR, and WDT. The device integrates 26x10-bit Analog-to-Digital converters and 64KB of EEPROM. Supplied in a 100-LQFP (14x14) surface-mount package, it operates within a temperature range of -40°C to 105°C. This microcontroller is suitable for automotive applications.
Additional Information
Series: SPC56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 64MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 40K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z0h |
| Data Converters | A/D 26x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 100-LQFP (14x14) |
| Grade | Automotive |
| Number of I/O | 67 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

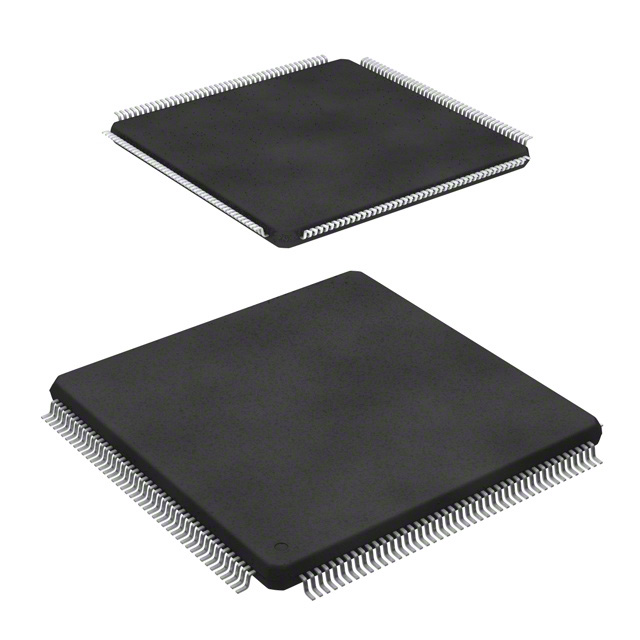

SPC564A80L7CFAR
