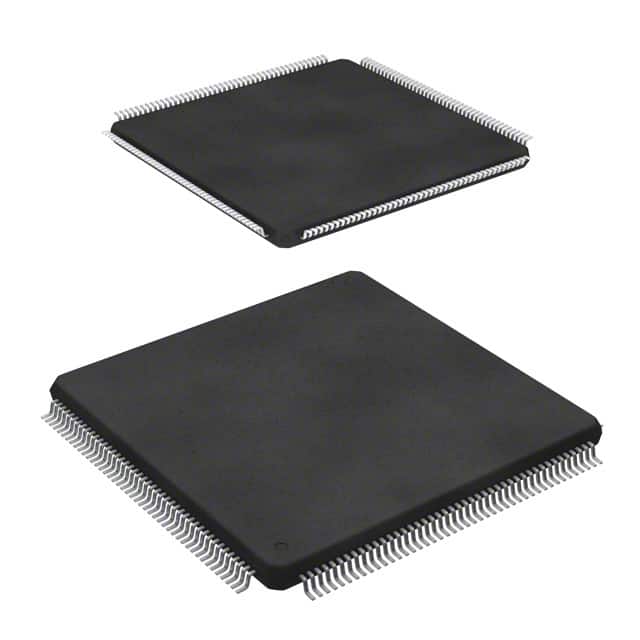

SPC560B64L7C6E0X
IC MCU 32BIT 1.5MB FLASH 176LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics SPC560B64L7C6E0X is a 32-bit single-core microcontroller featuring the e200z0h core operating at 64MHz. This automotive-grade component offers 1.5MB of FLASH program memory and 96KB of RAM. Connectivity options include CANbus, I2C, LINbus, SCI, SPI, and UART/USART, facilitating robust communication in complex systems. Integrated peripherals include DMA, LVD, POR, PWM, and WDT, enhancing system control and reliability. The device is equipped with 53 analog-to-digital converter channels with 10/12-bit resolution. Supplied in a 176-LQFP package (24x24) for surface mounting, this AEC-Q100 qualified component is suitable for demanding automotive applications. The operating temperature range is -40°C to 125°C (TA), and it operates with a supply voltage of 3V to 5.5V. This component is packaged on a Tape & Reel (TR).
Additional Information
Series: SPC56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 64MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z0h |
| Data Converters | A/D 53x10/12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Grade | Automotive |
| Number of I/O | 149 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
