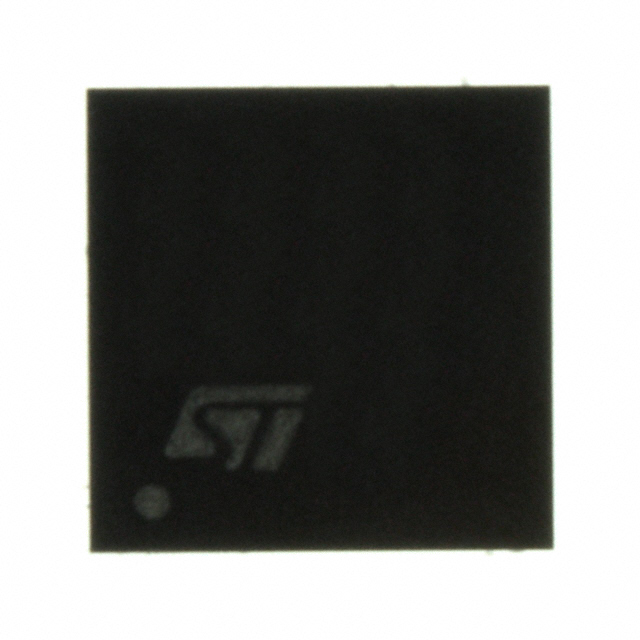

PM6675ASTR
IC REG DL BCK/LNR 33KHZ 24VFQFPNManufacturer: STMicroelectronics
Categories: Linear + Switching
Quality Control: Learn More
The STMicroelectronics PM6675ASTR is a dual-output power management IC featuring one step-down (buck) controller and one linear (LDO) regulator. This component is designed for applications requiring efficient voltage conversion and regulation, with the buck controller supporting frequencies down to 33kHz. The linear regulator provides adjustable output from 0.6V to 3.3V with a 2A capability. This device operates across a supply voltage range of 4.5V to 36V and is housed in a 24-VFQFPN (4x4) package with an exposed pad, suitable for surface mounting. Its operating temperature range is -40°C to 85°C. Industries such as automotive, industrial automation, and consumer electronics commonly utilize this type of power management solution. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 36V |
| Frequency - Switching | Down to 33kHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (1) |
| Supplier Device Package | 24-VFQFPN (4x4) |
| Voltage/Current - Output 1 | Controller |
| Voltage/Current - Output 2 | 0.6V ~ 3.3V, 2A |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 2 |
Request a Quote
Clients Also Buy
L5963Q-V0Y
IC REG TRP BCK/LNR SYNC 48VFQFPN
L9749TR
POWER TRAIN & SAFETY

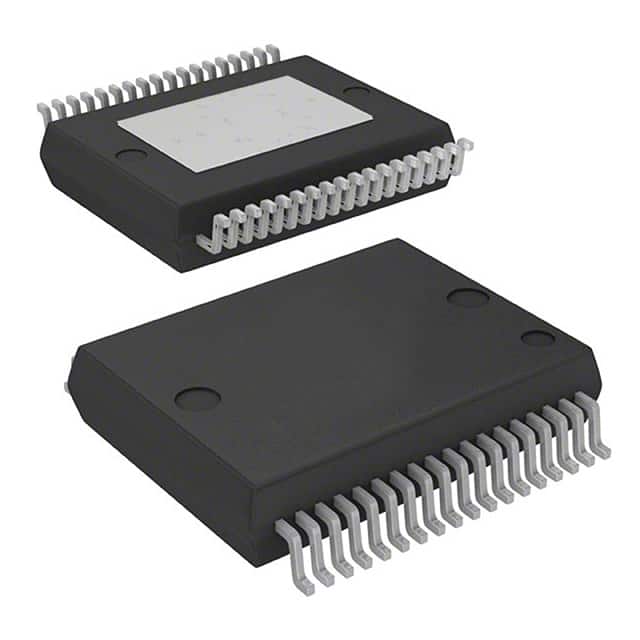

L5963DN-EHT
