LM350K
IC REG LINEAR POS ADJ 3A TO3Manufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

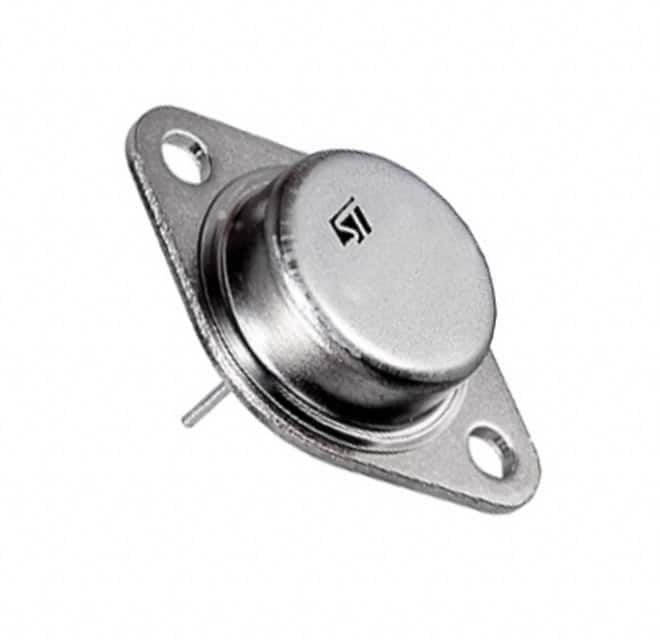

STMicroelectronics LM350K is a positive adjustable linear voltage regulator designed for high-current applications. This TO-204AA (TO-3) packaged device delivers a stable output voltage adjustable from 1.2V to 25V with a maximum input voltage of 35V. Featuring an output current capability of 3A, the LM350K incorporates robust protection circuitry against overcurrent and overtemperature conditions. Its typical power supply rejection ratio (PSRR) ranges from 86dB at 120Hz down to 65dB, ensuring effective filtering of input voltage variations. The LM350K is commonly employed in power supply units, industrial control systems, and consumer electronics where reliable voltage regulation is critical. This through-hole mounted component operates within a temperature range of 0°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-204AA, TO-3 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-3 |
| Voltage - Output (Max) | 25V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | - |
| PSRR | 86dB ~ 65dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
