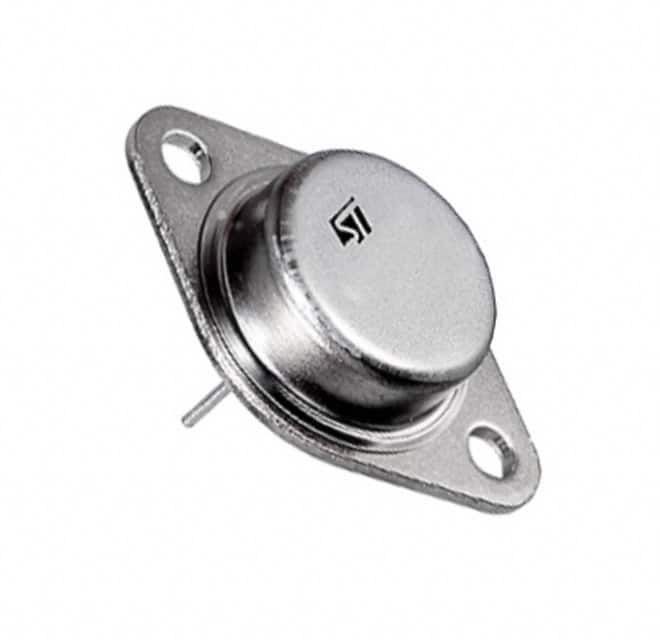

LM150K
IC REG LINEAR POS ADJ 3A TO3Manufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
STMicroelectronics LM150K is a positive adjustable linear voltage regulator with a 3A output current capability. This device features an output voltage that can be set from 1.2V to 25V, with a maximum input voltage of 35V. The LM150K offers robust protection against over current and over temperature conditions. Its high power dissipation capability is facilitated by the TO-3 package, making it suitable for demanding applications. Typical applications include power supplies for industrial control systems, high-power audio amplifiers, and automotive electronics. The regulator exhibits excellent Power Supply Rejection Ratio (PSRR) ranging from 86dB to 65dB across a 120Hz frequency range. It operates within a wide temperature range of -55°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -55°C ~ 150°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-3 |
| Voltage - Output (Max) | 25V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | - |
| PSRR | 86dB ~ 65dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
