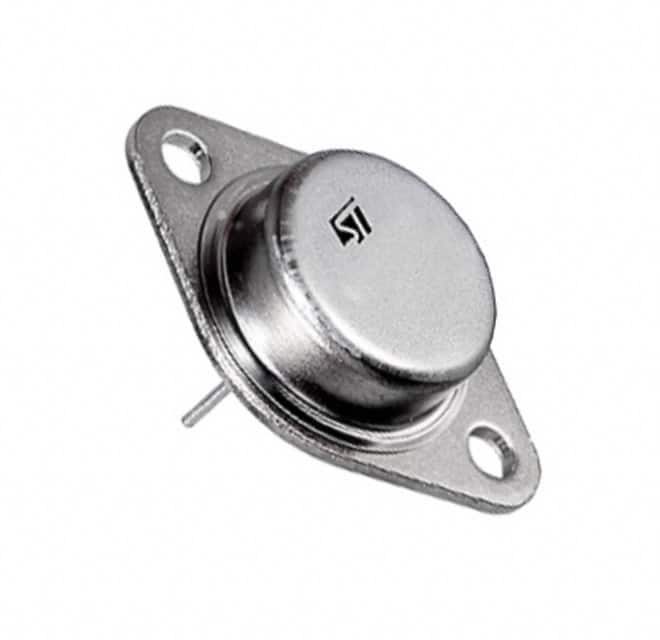

LM137K
IC REG LIN NEG ADJ 1.5A TO3Manufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The STMicroelectronics LM137K is a negative adjustable linear voltage regulator designed for applications demanding robust performance. This TO-3 packaged component provides a stable output voltage ranging from -1.2V to -37V, with a maximum input voltage of 40V and capable of delivering up to 1.5A of output current. Key features include built-in overcurrent and overtemperature protection, ensuring reliability in demanding environments. The device offers significant power supply ripple rejection (PSRR) of 77dB down to 60dB across a frequency range of 120Hz. Its wide operating temperature range of -55°C to 150°C makes it suitable for use in industrial, automotive, and telecommunications sectors where precise and stable negative voltage regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 1.5A |
| Operating Temperature | -55°C ~ 150°C |
| Output Configuration | Negative |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-3 |
| Voltage - Output (Max) | -37V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Control Features | - |
| PSRR | 77dB ~ 60dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
