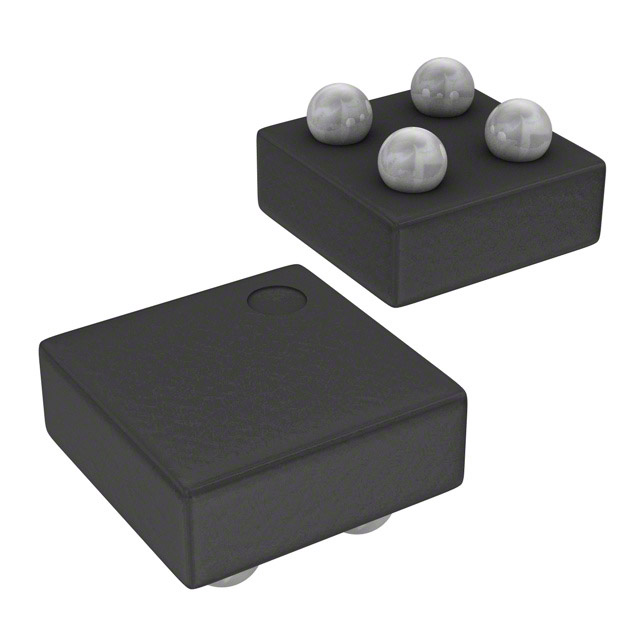

LDLN025J12R
IC REG LIN 1.2V 250MA 4FLIPCHIPManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
STMicroelectronics LDLN025J12R is a positive fixed output linear voltage regulator IC. This device delivers a stable 1.2V output with a maximum current capability of 250mA. It features a low quiescent current of 25 µA and an input voltage range up to 5.5V. The LDLN025J12R offers excellent power supply rejection ratio (PSRR) ranging from 80dB to 60dB across a frequency band of 100Hz to 100KHz. Protection features include over current, over temperature, and short circuit protection, along with a soft start capability. The regulator operates within an ambient temperature range of -40°C to 125°C. Supplied in a compact 4-FlipChip (0.63x0.63) package, this component is suitable for surface mount applications and is available on Tape & Reel. Its performance characteristics make it applicable in various consumer electronics and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, FCBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 25 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-FlipChip (0.63x0.63) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 80dB ~ 60dB (100Hz ~ 100KHz) |
| Voltage Dropout (Max) | 0.2V @ 250mA |
| Protection Features | Over Current, Over Temperature, Short Circuit, Soft Start |
| Current - Supply (Max) | 425 µA |
