LD59150PURY
IC REG LINEAR POS ADJ 1.5A 10DFNManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

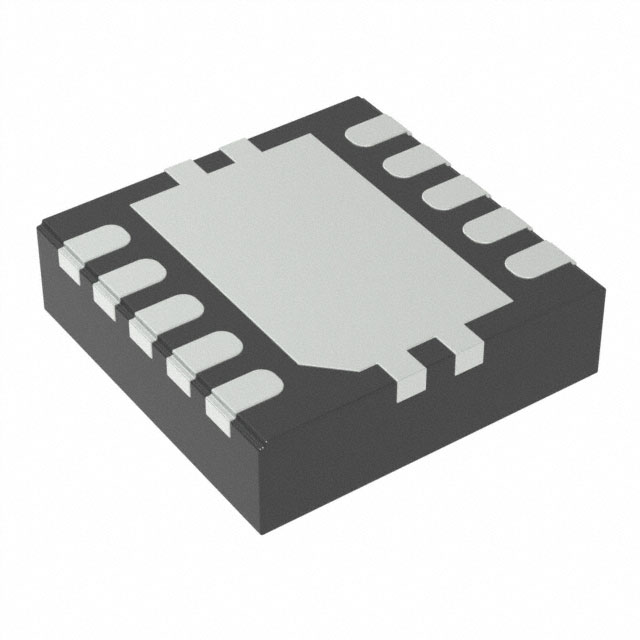

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A 10-DFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 10-DFN (3x3) |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good |
| PSRR | 70db ~ 30dB (1kHz ~ 300kHz) |
| Voltage Dropout (Max) | 0.125V @ 1.5A |
| Protection Features | Current Limit, Thermal Shutdown, UVLO |
