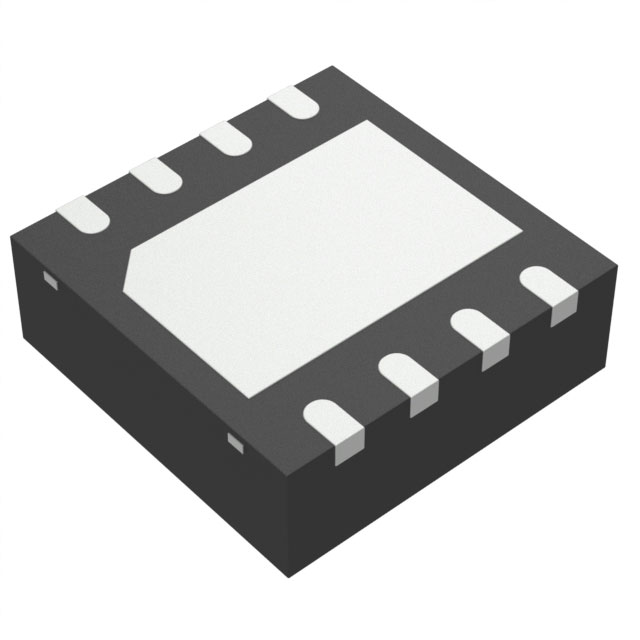

LD39200DPUR
IC REG LINEAR POS ADJ 2A 8DFNManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A 8-DFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 300 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-DFN (4x4) |
| Voltage - Output (Max) | 5.75V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Control Features | Enable, Power Good |
| PSRR | 70dB ~ 40dB (1kHz ~ 1MHz) |
| Voltage Dropout (Max) | 0.25V @ 2A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 3 mA |
Request a Quote
