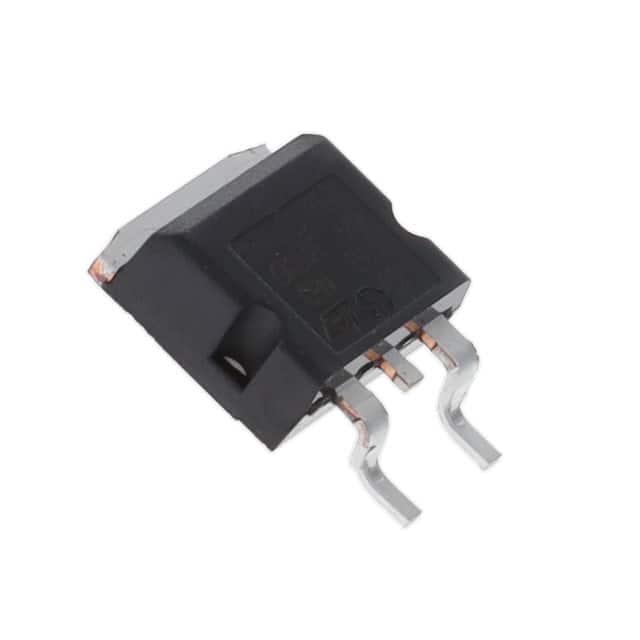

LD29300D2T25R
IC REG LINEAR 2.5V 3A D2PAKManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 3A D2PAK
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 50 mA |
| Voltage - Input (Max) | 14V |
| Number of Regulators | 1 |
| Supplier Device Package | D2PAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 0.7V @ 3A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 100 mA |
Request a Quote
