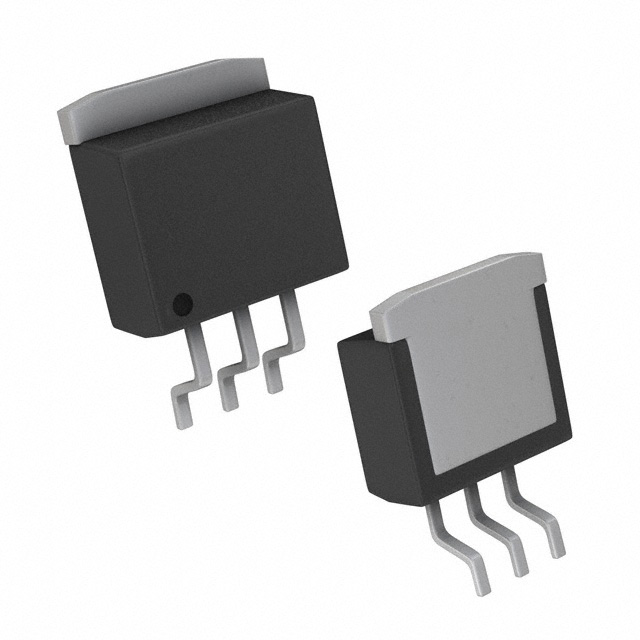

LD29300D2M50R
IC REG LINEAR 5V 3A D2PAK/AManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
STMicroelectronics LD29300D2M50R is a positive fixed output linear voltage regulator. This device provides a stable 5V output with a maximum output current of 3A. Featuring a low dropout voltage of 0.7V at 3A, it is designed for efficient power regulation. The regulator includes over-current and over-temperature protection for enhanced reliability. With a maximum input voltage of 14V and a quiescent current of 50mA, the LD29300D2M50R is suitable for applications requiring high current delivery in a compact form factor. This component is housed in a TO-263-4, D2PAK package and is supplied on tape and reel. Its performance characteristics make it applicable in various industrial and automotive power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 50 mA |
| Voltage - Input (Max) | 14V |
| Number of Regulators | 1 |
| Supplier Device Package | D2PAK-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 64dB (120Hz) |
| Voltage Dropout (Max) | 0.7V @ 3A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 100 mA |
