LD29080PT33R
IC REG LINEAR 3.3V 800MA PPAKManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

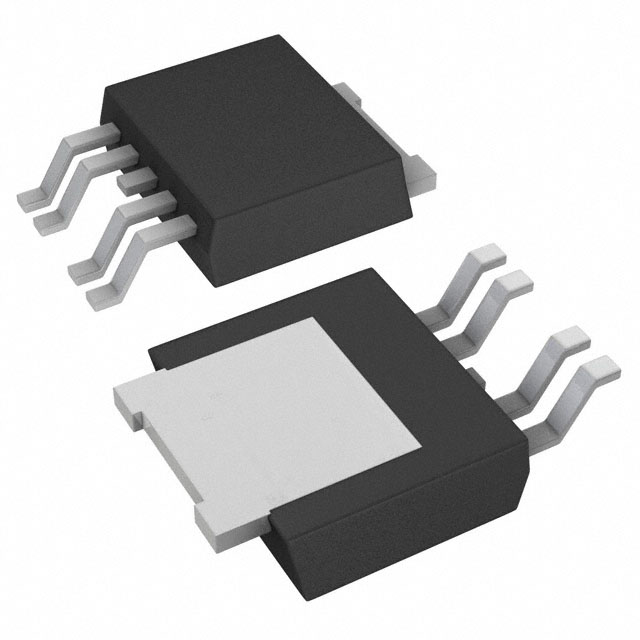

STMicroelectronics LD29080PT33R is a fixed 3.3V, 800mA positive linear voltage regulator. This component features an 180 µA quiescent current and a maximum input voltage of 13V. The dropout voltage is 0.7V at 800mA. Protection features include over current and over temperature. The device offers a Power Supply Rejection Ratio (PSRR) of 67dB at 120Hz and an enable control feature. It is supplied in a PPAK package (TO-252-5, DPAK) for surface mounting and is available on tape and reel. This regulator is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 180 µA |
| Voltage - Input (Max) | 13V |
| Number of Regulators | 1 |
| Supplier Device Package | PPAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 67dB (120Hz) |
| Voltage Dropout (Max) | 0.7V @ 800mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 35 mA |
