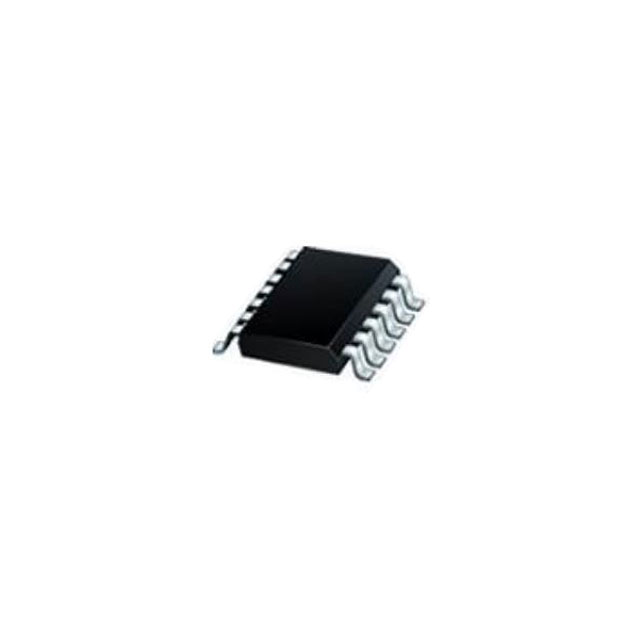

L99VR01JTR
IC REG LIN POS PROG 200MA PWRSSOManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
STMicroelectronics L99VR01JTR is a linear positive programmable voltage regulator. This automotive-grade component, qualified to AEC-Q100 standards, delivers up to 200mA output current with a maximum dropout voltage of 0.53V at 200mA. It features an input voltage range up to 40V and offers programmable output voltages selectable from 0.8V to 5V. The regulator includes essential control features such as enable, reset, and watchdog functions, along with robust protection against overcurrent and overtemperature conditions. With a quiescent current of 100 µA and a supply current of 3.5 mA (max), it is suitable for power-sensitive applications. The device is supplied in a PowerSSO-12 package, mounted via surface mount technology, and available on tape and reel. This component is commonly utilized in automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-PowerLSOP (0.154"", 3.90mm Width) |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | PowerSSO-12 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V, 5V |
| Control Features | Enable, Reset, Watchdog |
| Grade | Automotive |
| PSRR | 75dB (1kHz) |
| Voltage Dropout (Max) | 0.53V @ 200mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 3.5 mA |
| Qualification | AEC-Q100 |
