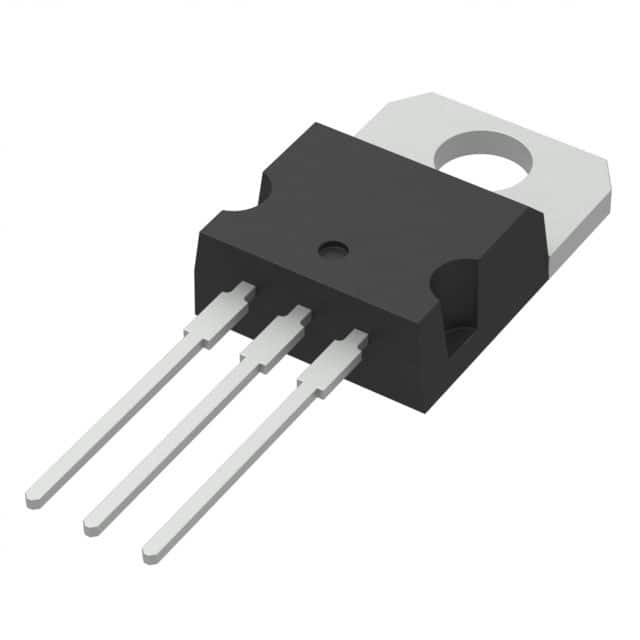

L78S12CV-DG
IC REG LINEAR 12V 2A TO220Manufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 2A TO-220
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 2A |
| Operating Temperature | 0°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Control Features | - |
| PSRR | 47dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
