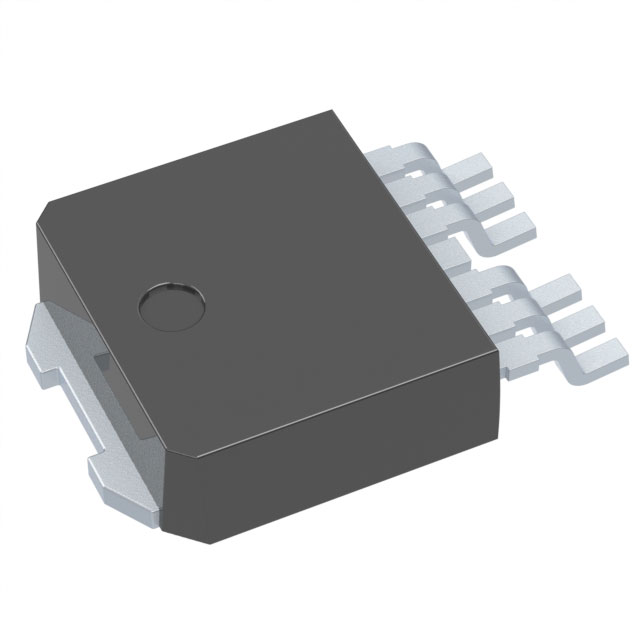

L5300AH7TR
IC REG LINEAR 5V 300MA 6HPAKManufacturer: STMicroelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
STMicroelectronics L5300AH7TR is a positive fixed output linear voltage regulator offering 300mA output current. This AEC-Q100 qualified component features a 5V output voltage and a low dropout voltage of 0.5V at 300mA. Key control features include an enable and reset pin. Protection mechanisms are integrated for over-temperature and short-circuit conditions. The device operates with a quiescent current of 80 µA and a maximum supply current of 4.2 mA. Its input voltage range extends up to 40V. The L5300AH7TR is supplied in a 6-HPAK (TO-252-7) surface-mount package, provided on tape and reel. This regulator is suitable for automotive applications demanding high reliability and efficient power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-7, DPAK (6 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 80 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-HPAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable, Reset |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 4.2 mA |
| Qualification | AEC-Q100 |
