STLED25JR
IC LED DRV RGLTR PWM 12FLIPCHIPManufacturer: STMicroelectronics
Categories: LED Drivers
Quality Control: Learn More
STMicroelectronics STLED25JR is a 5-output DC-DC step-up (boost) LED driver IC. This device features a 2.5MHz switching frequency and supports PWM dimming with a maximum output current of 125mA per channel. The internal switch capability simplifies design, and the 12-FlipChip (1.4x1.8) package is suitable for surface mount applications. Operating from a 2.3V to 5.5V supply, it provides a regulated output voltage of 8.8V. This component is utilized in backlight applications across various industries. The STLED25JR is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

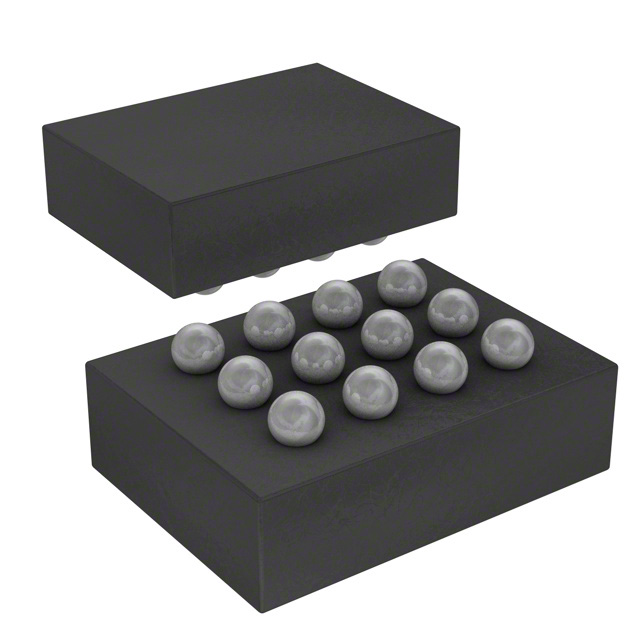

| Package / Case | 12-UFBGA, FCBGA |
| Voltage - Output | 8.8V |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Frequency | 2.5MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 125mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 12-FlipChip (1.4x1.8) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.3V |
| Voltage - Supply (Max) | 5.5V |
