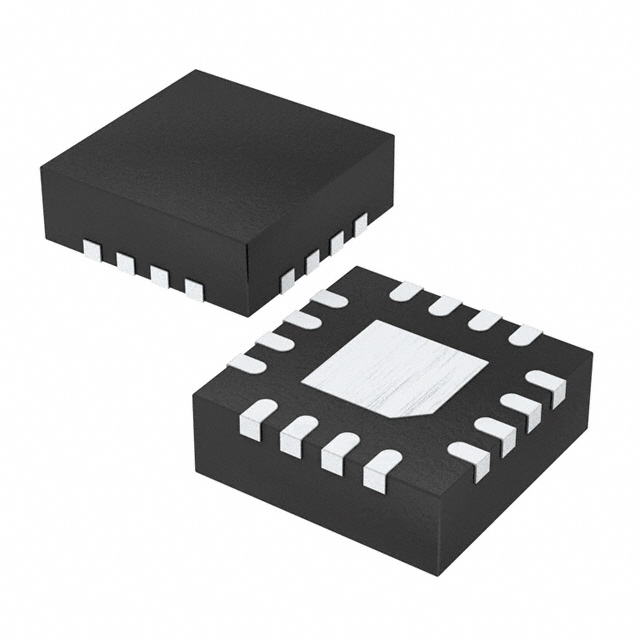

STCF07PNR
IC LED DRIVER RGLTR 1A 16QFNManufacturer: STMicroelectronics
Categories: LED Drivers
Quality Control: Learn More
The STMicroelectronics STCF07PNR is a versatile DC-DC regulator designed for LED driver applications. This single-output device integrates both step-down (buck) and step-up (boost) topologies, enabling flexible voltage conversion. It can deliver an output current of up to 1A, specifically optimized for camera flash functionality. The device operates with an input voltage range of 2.7V to 5.5V and provides an adjustable output voltage from 2.5V to 5.3V. Featuring an internal switch and a switching frequency of 1.8MHz, the STCF07PNR is supplied in a compact 16-QFN (4x4) package, suitable for surface mount installation. This component is commonly utilized in mobile devices and portable electronics requiring high-current LED illumination. The STMicroelectronics STCF07PNR is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Voltage - Output | 2.5V ~ 5.3V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1.8MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Camera Flash |
| Current - Output / Channel | 1A (Flash) |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 16-QFN (4x4) |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
