PM6600
IC LED DRVR RGLTR PWM 24VFQFPNManufacturer: STMicroelectronics
Categories: LED Drivers
Quality Control: Learn More

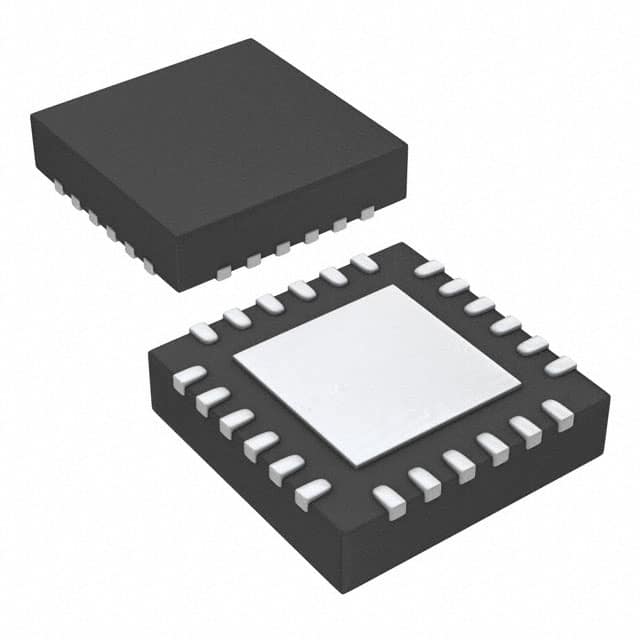

The STMicroelectronics PM6600 is a versatile 6-output LED driver IC designed for efficient backlight applications. This DC-DC step-up (boost) regulator features integrated switching to manage current up to 32mA per channel, with a maximum output voltage of 36V. The device supports PWM dimming for precise light control, operating with a PWM frequency range of 200kHz to 1MHz. It is available in a compact 24-VFQFPN (4x4) surface mount package, suitable for space-constrained designs. The PM6600 operates from a supply voltage of 4.7V to 28V and is rated for an ambient temperature range of -40°C to 85°C. This component is commonly utilized in display backlighting for various electronic devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-VFQFN Exposed Pad |
| Voltage - Output | 36V |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 200kHz ~ 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 32mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 24-VFQFPN (4x4) |
| Dimming | PWM |
| Voltage - Supply (Min) | 4.7V |
| Voltage - Supply (Max) | 28V |
