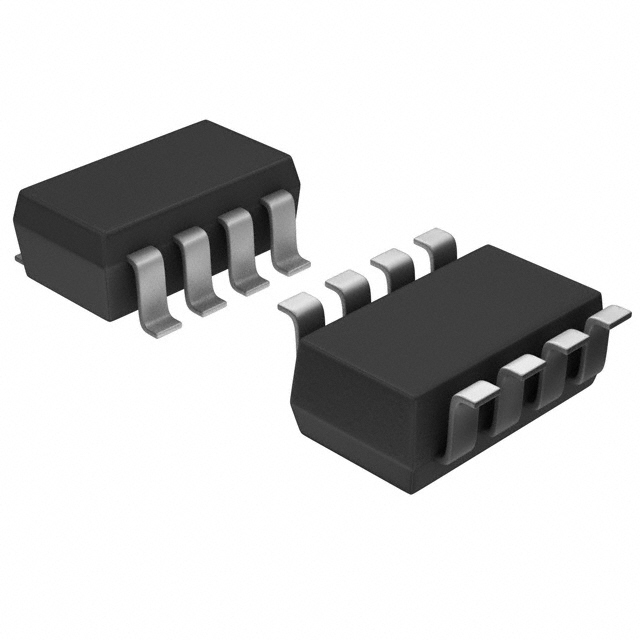

TSV6292ILT
IC CMOS 2 CIRCUIT SOT23-8Manufacturer: STMicroelectronics
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The STMicroelectronics TSV6292ILT is a dual CMOS operational amplifier featuring rail-to-rail input and output capabilities. This SOT-23-8 packaged device offers a 1.3 MHz gain bandwidth product and a 0.5 V/µs slew rate, making it suitable for a variety of signal conditioning applications. With a low input bias current of 1 pA and a quiescent current of only 29 µA per channel, the TSV6292ILT is an efficient choice for battery-powered systems. It operates over a supply voltage range of 1.5 V to 5.5 V and across an extended temperature range of -40°C to 125°C. The high output current capability of 74 mA per channel further enhances its utility in portable electronics, industrial control, and sensor interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 29µA |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1.3 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 4 mV |
| Supplier Device Package | SOT-23-8 |
| Number of Circuits | 2 |
| Current - Output / Channel | 74 mA |
| Voltage - Supply Span (Min) | 1.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
