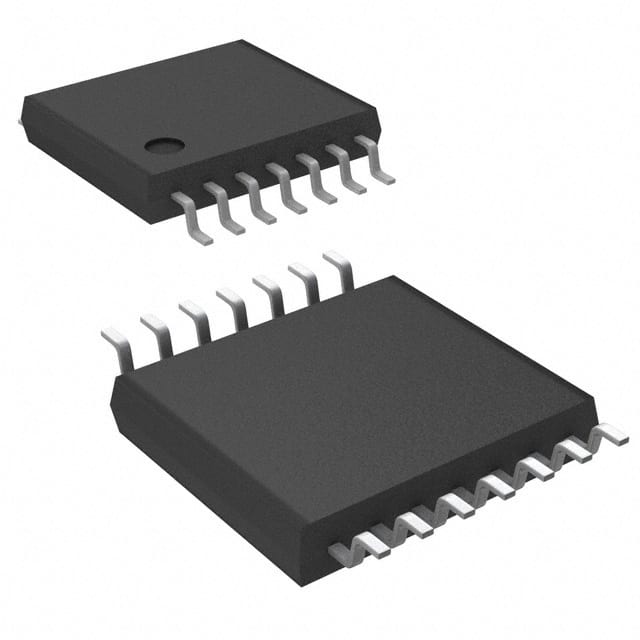

TSH114IPT
IC OPAMP CFA 4 CIRCUIT 14TSSOPManufacturer: STMicroelectronics
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
STMicroelectronics TSH114IPT is a high-performance, quad-channel current feedback amplifier designed for demanding applications. This device offers a typical -3dB bandwidth of 100 MHz and a rapid slew rate of 450V/µs, enabling efficient signal processing. Each channel draws a quiescent current of 3.2mA and can deliver an output current of 47mA. The input bias current is specified at 3 µA, with a voltage input offset of 900 µV. Operating across a supply voltage range of 5V to 12V, the TSH114IPT is housed in a compact 14-TSSOP (0.173", 4.40mm width) package, suitable for surface mount assembly. This component is qualified to AEC-Q100 and is graded for automotive environments, making it ideal for use in automotive electronics, industrial control systems, and high-speed signal conditioning. The TSH114IPT is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 3.2mA |
| Slew Rate | 450V/µs |
| Current - Input Bias | 3 µA |
| Voltage - Input Offset | 900 µV |
| Supplier Device Package | 14-TSSOP |
| Grade | Automotive |
| Number of Circuits | 4 |
| Current - Output / Channel | 47 mA |
| -3db Bandwidth | 100 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Qualification | AEC-Q100 |
Request a Quote
