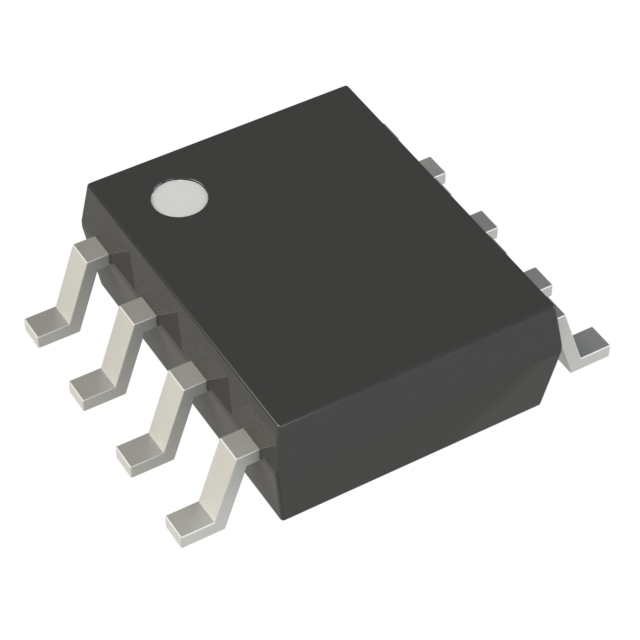

TS613ID
IC VOLTAGE FEEDBACK 2 CIRC 8SOManufacturer: STMicroelectronics
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The STMicroelectronics TS613ID is a dual-circuit voltage feedback amplifier housed in an 8-SOIC package. This component offers a 130 MHz gain bandwidth product and a 40 V/µs slew rate, making it suitable for high-speed signal processing applications. It features a low input bias current of 5 µA and a notable output current capability of 320 mA per channel. The device operates across a supply voltage range of 5 V to 12 V, consuming 11 mA of supply current. Designed for surface mounting, the TS613ID is utilized in industries such as industrial automation and consumer electronics. Its typical operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 11mA |
| Slew Rate | 40V/µs |
| Gain Bandwidth Product | 130 MHz |
| Current - Input Bias | 5 µA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 8-SO |
| Number of Circuits | 2 |
| Current - Output / Channel | 320 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
