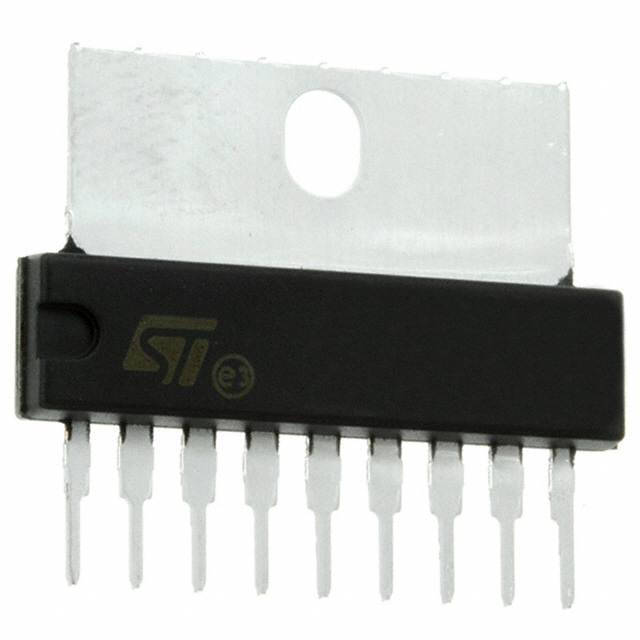

L2724
IC OPAMP GP 2 CIRCUIT 9SIPManufacturer: STMicroelectronics
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
STMicroelectronics L2724 is a dual general-purpose operational amplifier housed in a 9-SIP package. This component offers a 1.2 MHz gain bandwidth product and a 2V/µs slew rate, suitable for various analog signal processing applications. Key specifications include a 200 nA input bias current and a substantial 1.5 A output current capability per channel. The device operates over a supply voltage range of 4 V to 28 V, with a typical supply current of 10 mA. The L2724 is utilized in sectors such as industrial automation, consumer electronics, and automotive systems where reliable analog amplification is required. The through-hole mounting type simplifies integration into existing PCB designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 9-SIP |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | - |
| Current - Supply | 10mA |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 200 nA |
| Voltage - Input Offset | 10 mV |
| Supplier Device Package | 9-SIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 1.5 A |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 28 V |
