STG3P2M10N60B
IGBT MOD 600V 19A 56W SEMITOP2Manufacturer: STMicroelectronics
Categories: IGBT Modules
Quality Control: Learn More

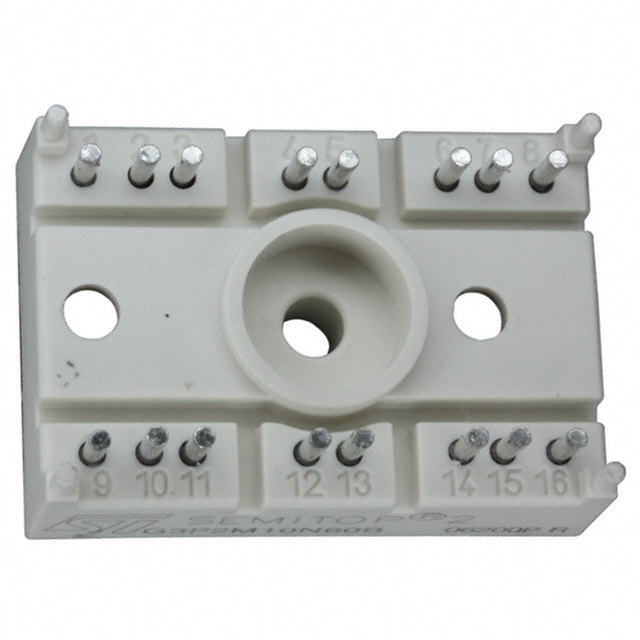

STMicroelectronics STG3P2M10N60B is a three-phase inverter IGBT module from the SEMITOP® series. This chassis-mount device is rated for 600 V collector-emitter breakdown voltage and can handle a continuous collector current of 19 A, with a maximum power dissipation of 56 W. The module features a low Vce(on) of 2.5 V at 15V gate-emitter voltage and 7A collector current. Input capacitance (Cies) is specified at 720 pF at 25 V. With an operating temperature range of -40°C to 150°C (TJ), this module is suitable for applications in industrial automation and power conversion systems. The SEMITOP®2 package facilitates efficient thermal management.
Additional Information
Series: SEMITOP®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SEMITOP®2 |
| Mounting Type | Chassis Mount |
| Input | Single Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 7A |
| NTC Thermistor | No |
| Supplier Device Package | SEMITOP®2 |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 19 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 56 W |
| Current - Collector Cutoff (Max) | 10 µA |
| Input Capacitance (Cies) @ Vce | 720 pF @ 25 V |
